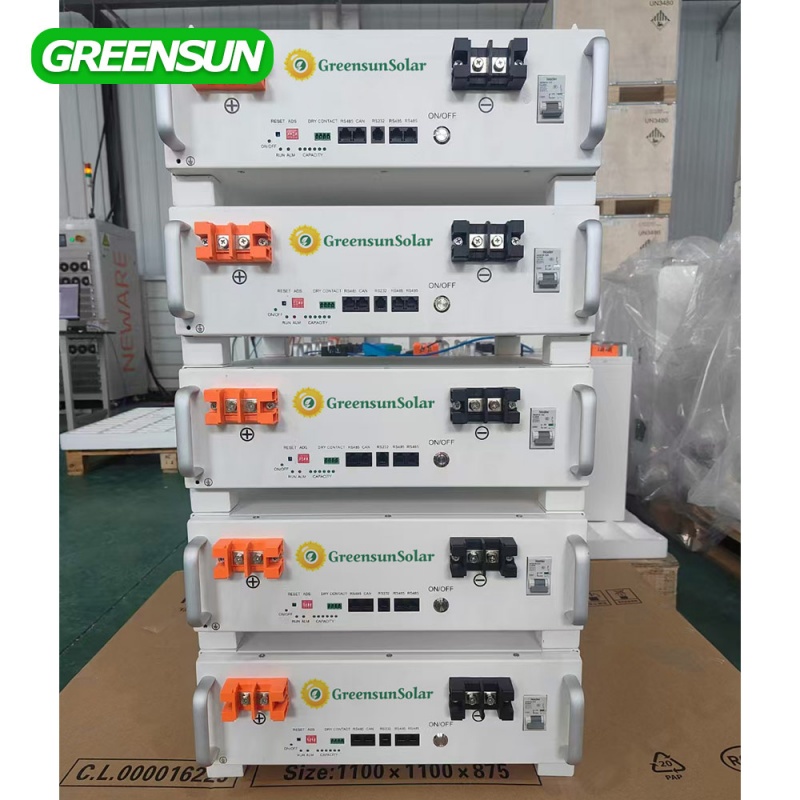

Greensun low voltage rack mounted lithium battery uses leading brand EVE, REPT grade A cells
Very safe and Bluetooth monitoring & Smart BMS
Support parallel to expand capacity easily up to 76.8kwh
رقم الصنف :
51.2V 100AH Lithium Batteryالنظام (موك) :
Negotiableقسط :
T/T, L/C at sight, Paypal, etcأصل المنتج :
Chinaلون :
White or Optional Colorميناء الشحن :
Shanghai, Ningbo, Shenzhenمهلة :
5-15 daysوزن :

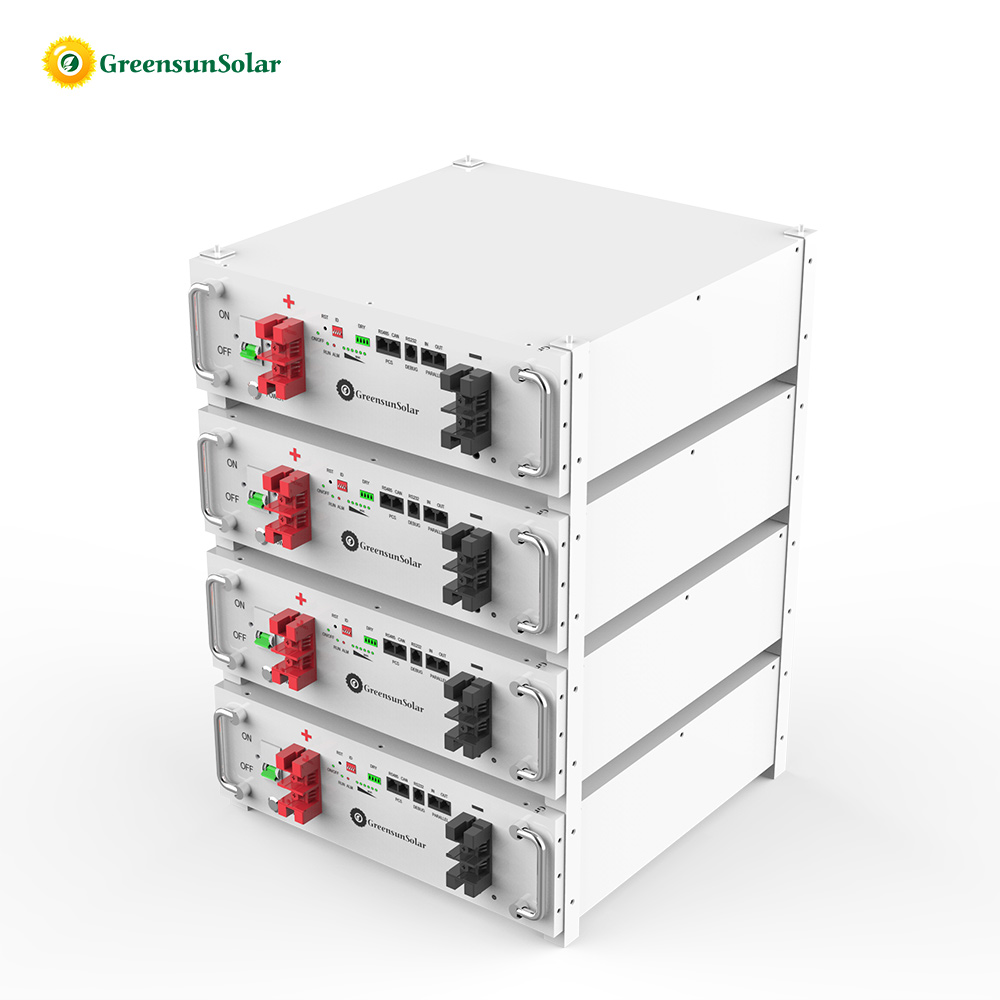

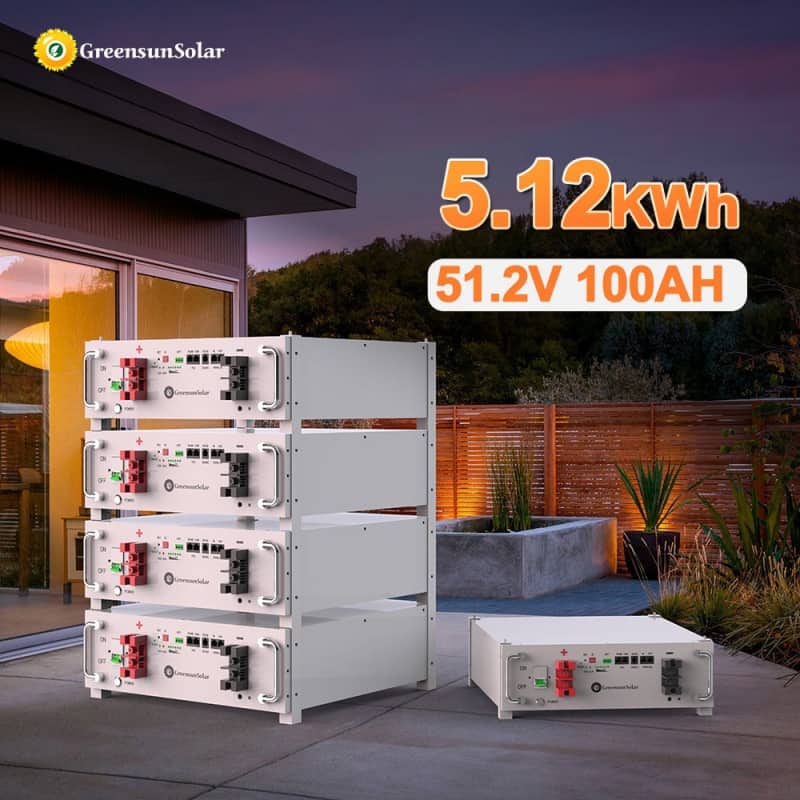

Approx 43 KgCommercial 51.2V 100AH 300AH 600AH Low Voltage Lifepo4 Battery Rack for Solar Home System

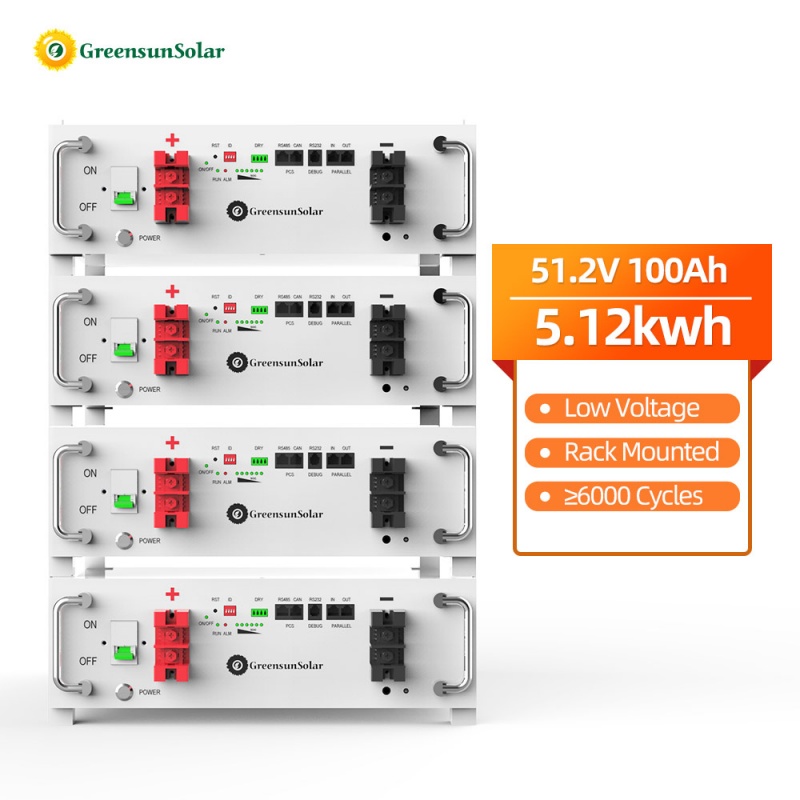

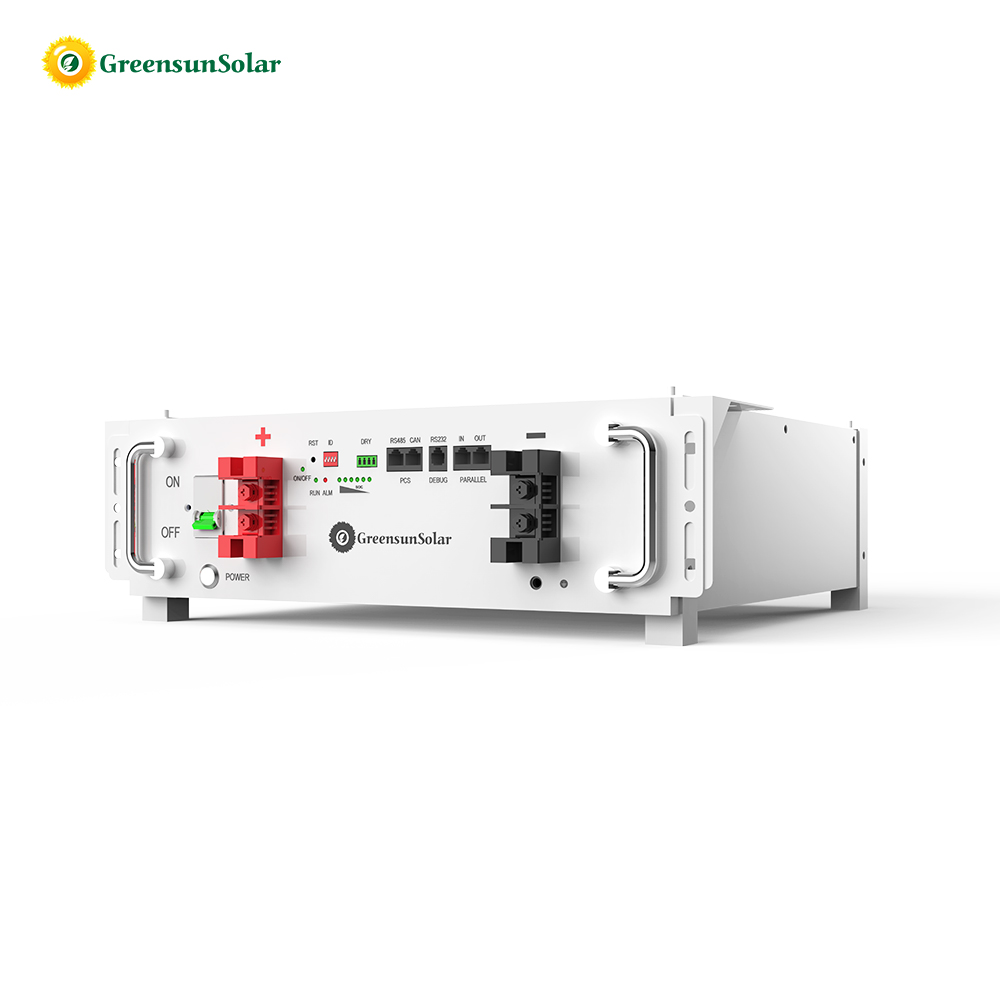

51.2V 100Ah Rack Mounted Lithium Ion Battery Technical Data for Review
Battery Module | GLR-100 |
Battery Chemistry
|
LiFePO4
|
Built-In Circuit Breaker
|
125A 1P
|
Nominal Capacity
|
100Ah
|
Nominal Voltage
|
51.2V
|
Operating Voltage
|
44.8~57.6V
|
Nominal Energy
|
5.12Kwh
|
Scalability
|
Max. 15 pcs pack
(Max. 76.80kWh) in parallel
|
Charge/Discharge Current
|
Max. Continuous: 100A
Peak: 150A(100ms)
|
Recommend Depth of Discharge
|
90% DoD
|

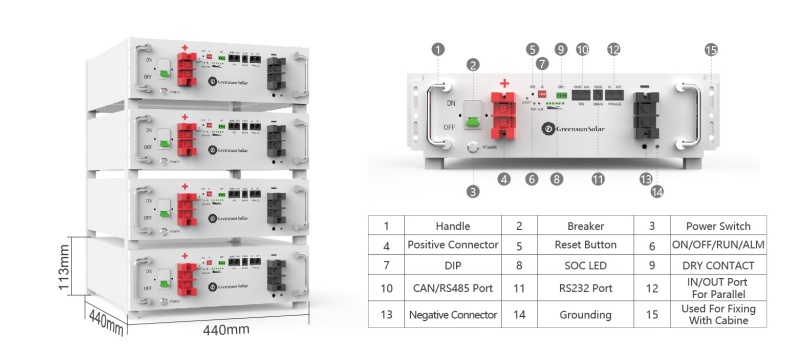

Dimension
|
440*440*133mm
|
Battery Pack N.W.
|
43kg
|
Master LED Indicator
|
6LED ( SOC : 17% ~ 100% ) , 3LED ( ON/OFF, RUN, Alarm )
|
Bluetooth
|
Include
|

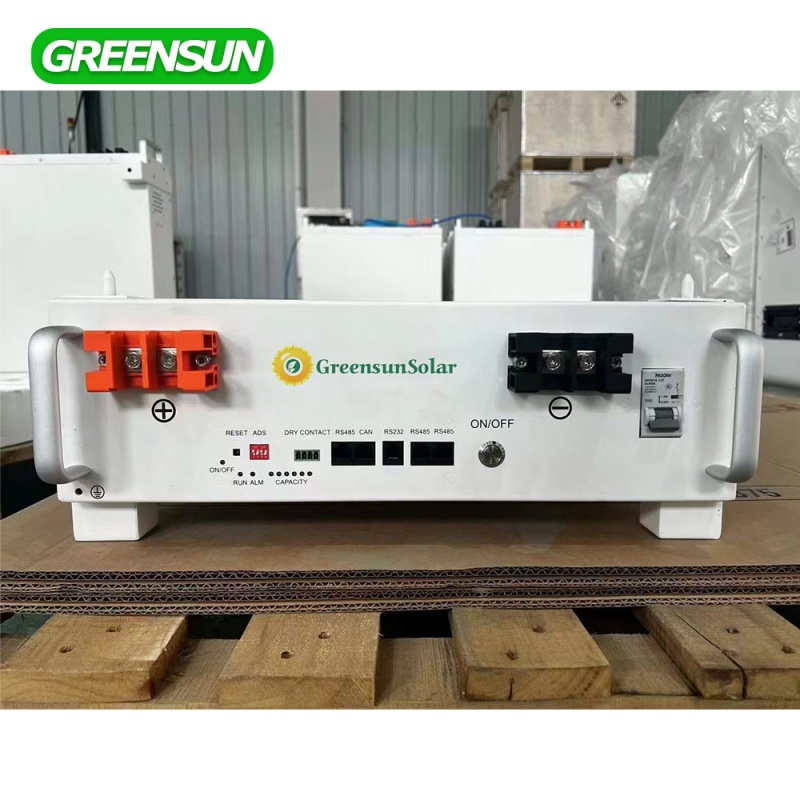

Communication Port
|
CAN/RS232/RS485
|
IP Rating of Enclosure
|
IP20
|
Operating Temperature
|
Charge : 0℃~55℃,
Discharge : -20℃ ~ 60℃
|
Storage Temperature
|
-10 ~ 40℃
|
Relative Humidity
|
95%
|
Altitude
|
≤2000 m
|
Cycle Life
|
≥6000 90%DOD
|
Warranty Period
|
10Years
|
Installation
|
Rack Mounted
|
Certification
|
CE,UN38.3,MSDS
|

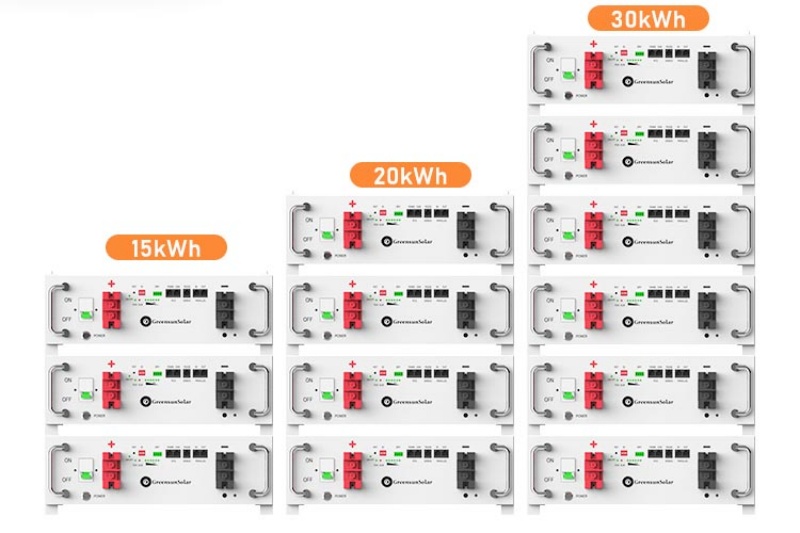

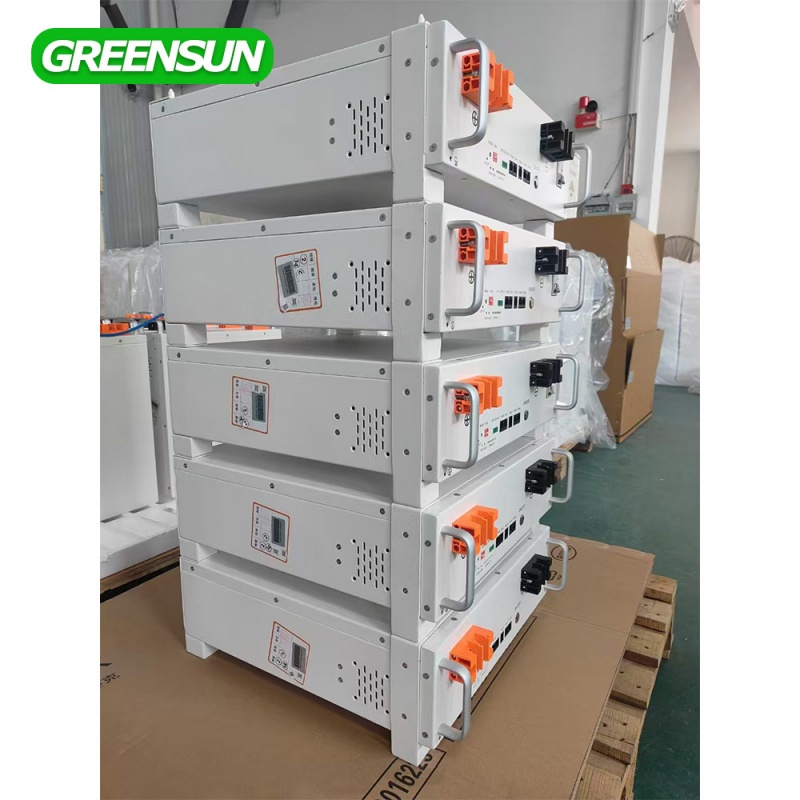

Parallel connection increases capacity(Multiple combination options)

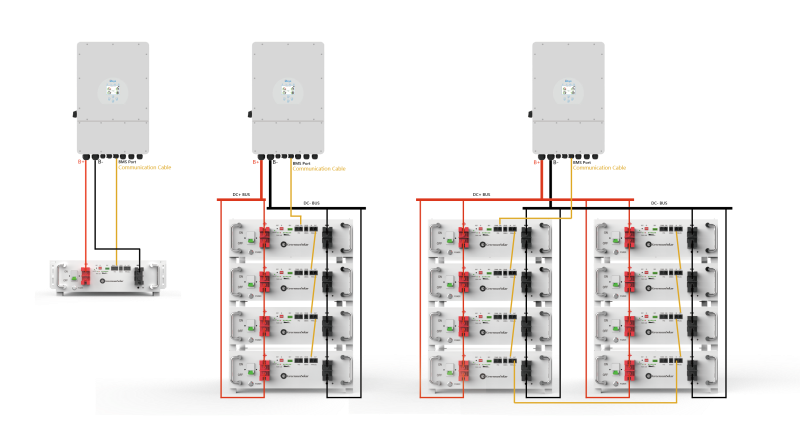

Battery pack connection demonstration

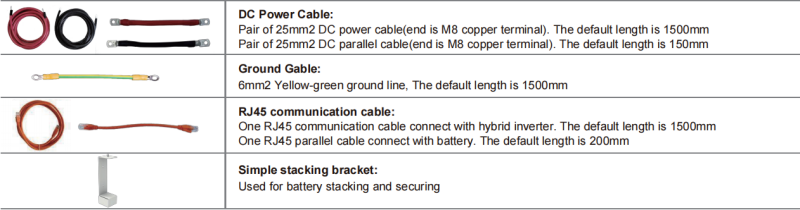

Battery Pack Default Accessories
In the photovoltaic energy storage sector, lithium batteries offer significant advantages over traditional lead-acid batteries.
Higher security, small size, light weight, fast charging speed.
The self-discharge rate is smaller and the energy density is higher.
Higher convenience and longer service life.
This 12.8V series can be used in 4 series to 51.2V, when the battery be used in 4 series, please set chargecut-off voltage to 56V, discharge cut-off voltage to 48V, max charge current to 100A, max discharge current to 100A.
We accept customized requests for this type of lithium battery and can configure and produce it according to your specific requirements.
Currently, our lithium battery products utilize A+ grade quality cells and do not use second-hand cells.
Each lithium battery undergoes multiple tests before shipment, including but not limited to cell voltage, cell current, battery voltage and current, and charge and discharge tests.
This ensures that our products meet the needs of mid-range and high-end customers.
We also offer a 10-year warranty.
Depending on the specific situation, our dedicated team of engineers can resolve customer issues through program upgrades, individual cell replacements, BMS replacements, or even complete battery replacements.

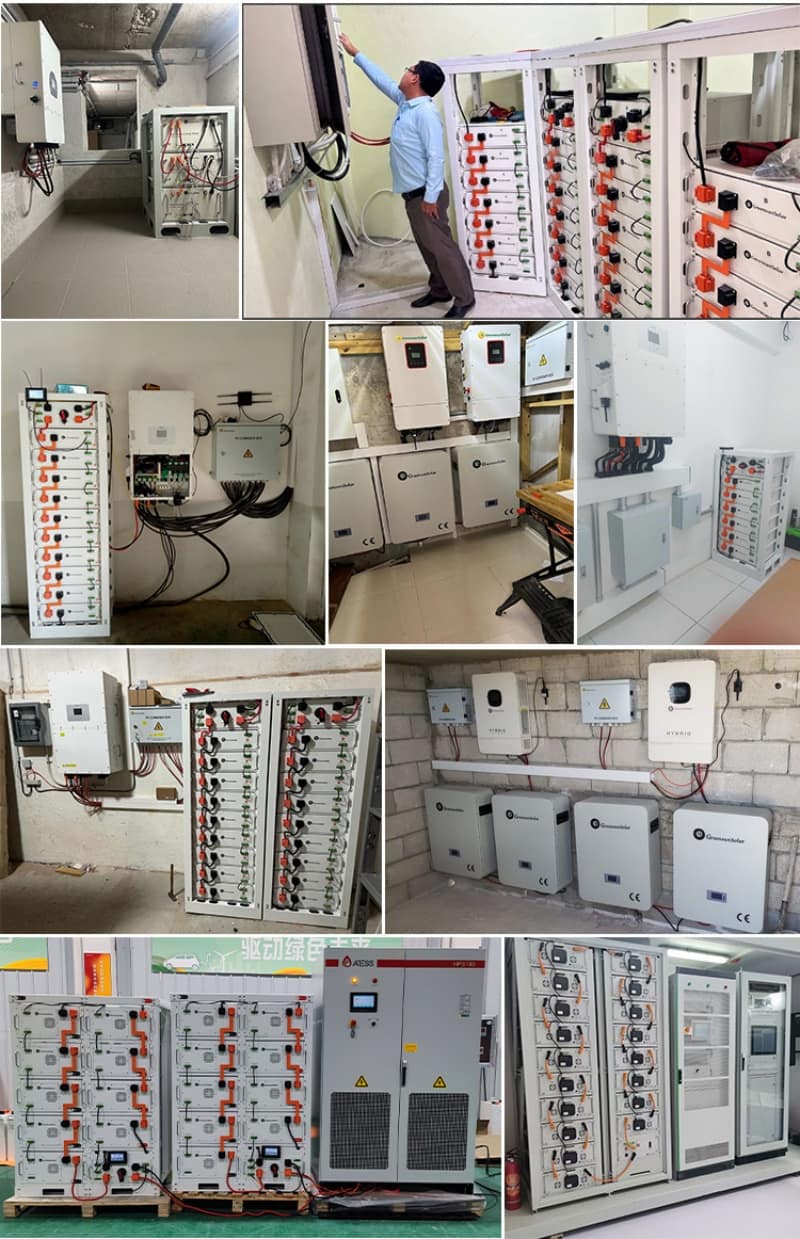

Our lithium-ion battery products have been exported to numerous countries, including but not limited to the United States, Canada, Puerto Rico, Germany, Poland, Belgium, the Philippines, Saudi Arabia, South Africa, Nigeria, and more.
