رقم الصنف :
G125K-LE260النظام (موك) :
1 setقسط :
T/T, Alibaba Online, L/C at sight, etcأصل المنتج :
China, Anhuiلون :
White(OEM acceptable)ميناء الشحن :
Shanghai, Shenzhen, Ningboمهلة :
10-15 Daysوزن :

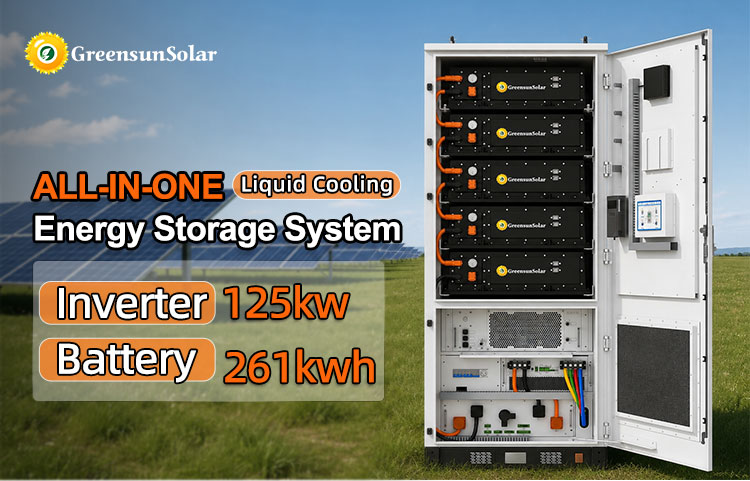

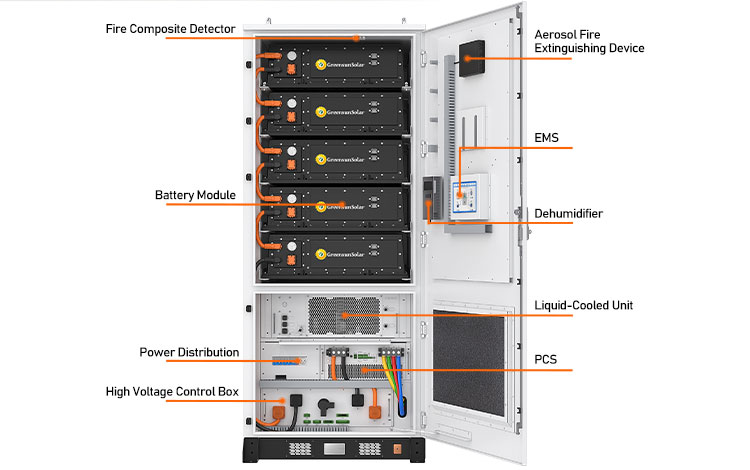

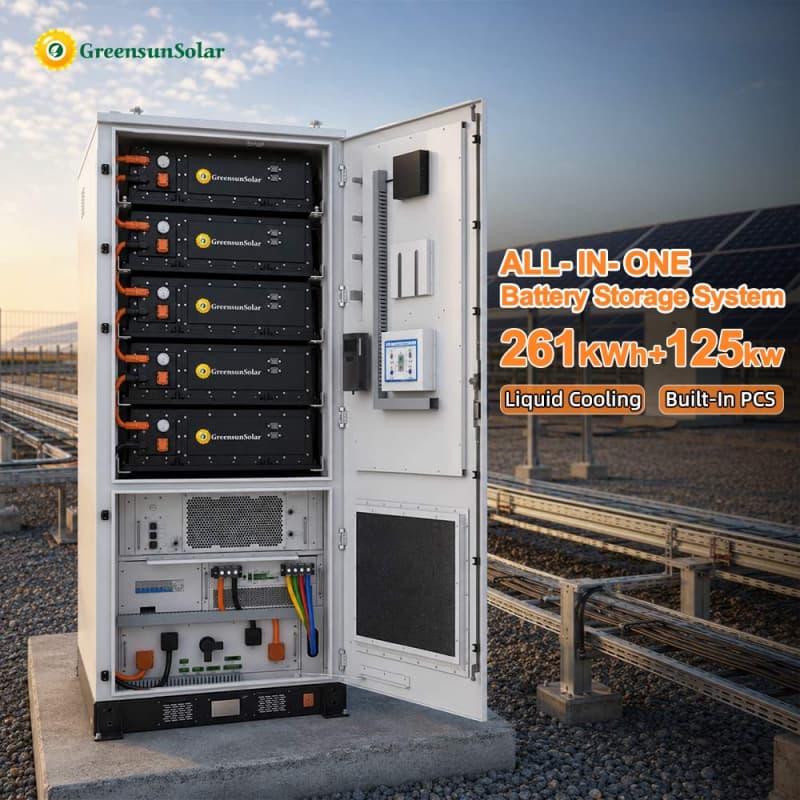

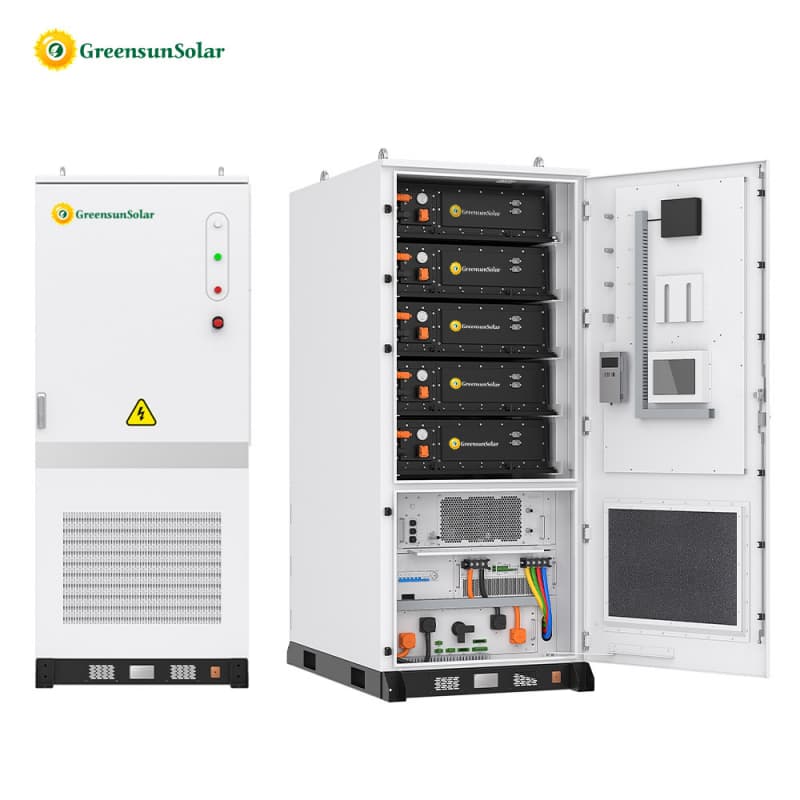

≤3TLiquid Cooling All-in-one BESS Outdoor with Built in 125kw PCS and 261 kwh Battery Energy Storage System
Technical Datasheet
|
Model
|
G125K-LE260
|
|
PCS Side(On grid mode)
|
|
|
Maximum Battery Voltage
|
950V
|
|
Rated Battery Voltage Range
|
680V-900V
|
|
Maximum Battery Current
|
200A
|
|
Rated Power
|
125KVA
|
|
Rated Current
|
181A
|
|
Rated Grid Voltage
|
400V/230V（-20%~15%）
|
|
Grid Frequency Range
|
50Hz/47Hz~52Hz(60Hz/57Hz~62Hz)
|
|
Current THD
|
<3% (>30% load)
|
|
Power Factor
|
-1~1
|
|
Temperature Range
|
-30~60℃(Derating at 45℃)
|
|
Battery Side
|
|
|
Battery Type
|
LFP(LiFeP04)
|
|
Nominal Energy
|
261kWh
|
|
Rated Voltage
|
832V
|
|
DC Voltage Range
|
728~949V
|
|
Rated Capacity(Ah)
|
314Ah
|
|
Max Charge/Discharge Current (A)
|
157A
|
|
Battery Module
|
166.4V 314Ah(52.25kWh)
|
|
Battery Module Qty In Series (Optional)
|
5
|
|
Cooling System
|
Liquid Cooling
|
|
System Parameter
|
|
|
Cabinet Size(W*D*H)
|
970*1420*2320mm
|
|
Weight Approximate (kg)
|
≤3.2T
|
|
Installation Location
|
Floor-mounted
|
|
Protection Class
|
IP54
|
|
Altitude (m)
|
≤3000Humidity
|
|
Humidity
|
5%-95%
|
|
Fire Extinguishing
|
Aerosol
|
|
Dehumidifier
|
Included
|
|
Fire Detector
|
Included
|
|
Max.parallel No.
|
15
|
Factory & Production
Greensun Solar Energy Tech. Co., Limited is a professional, fast growing company. Greensun Solar is well known as a world leading manufacturer of cost-effective, high efficiency and good quality photovoltaic panel, storage battery, and complete solar energy system for residential and C&I application.
Our Advantage
1.We are a real factory and have strict requirements on the quality of products.
2.We provide OEM services for many leading companies around the world. we also have long-term cooperation with Solis, Deye,Growatt, Must,SMA and other tier-one brands.
3.As a factory, we have better control over product costs.
4.Both production and delivery are very fast.
5. Also, we provide stable and long-term after-sales service.
Why Choose Greensun Lithium Battery
In the photovoltaic energy storage sector,
lithium batteries offer significant advantages over traditional lead-acid batteries.
It offer increased safety, compact size, light weight, and fast charging.
It also offer lower self-discharge rates and higher energy density.
And also more user-friendly and have a longer lifespan.
We accept customized requests for this type of lithium battery and can configure and produce it according to your specific requirements.
Currently, our lithium battery products utilize A+ grade quality cells and do not use second-hand cells.
Each lithium battery undergoes multiple tests before shipment, including but not limited to cell voltage, cell current, battery voltage and current, and charge and discharge tests.
This ensures that our products meet the needs of mid-range and high-end customers.
We also offer a 10-year warranty.
Depending on the specific situation, our dedicated team of engineers can resolve customer issues through program upgrades, individual cell replacements, BMS replacements, or even complete battery replacements.
Our lithium-ion battery products have been exported to numerous countries, including but not limited to the United States, Canada, Puerto Rico, Germany, Poland, Belgium, the Philippines, Saudi Arabia, South Africa, Nigeria, and more.
If you have any lithium-ion battery needs,
You can write to us below⬇️⬇️⬇️，and contact us directly.
We will tailor a specific energy storage product to meet your specific needs.

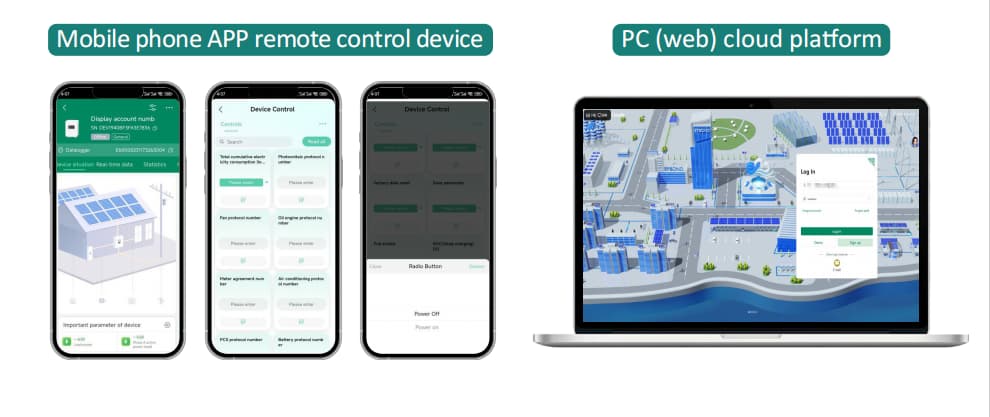

Higher energy density benefit from latest LFP technology Module design Support max 10sets in parallel Real-time monitoring of battery charging and discharging, online system updates and maintenance Lithium Iron Phosphate (LFP) Battery, The battery pack and system adopt an aerosol fire extinguishing solution
Higher energy density benefit from latest LFP technology Module design Support max 10sets in parallel Real-time monitoring of battery charging and discharging, online system updates and maintenance Lithium Iron Phosphate (LFP) Battery, The battery pack and system adopt an aerosol fire extinguishing solution
Higher energy density benefit from latest LFP technology Module design Support max 15sets in parallel Real-time monitoring of battery charging and discharging, online system updates and maintenance Lithium Iron Phosphate (LFP) Battery, The battery pack and system adopt an aerosol fire extinguishing solution
حلول خزانة بطاريات الليثيوم من Greensun Solar، الشركة المصنعة الخاصة بها، تبريد سائل BESS 261 كيلو وات في الساعةنظام بطارية ليثيوم أيون قابلة لإعادة الشحن مع أجهزة كمبيوتر 125 كيلو وات، يدعم 10 مجموعات كحد أقصى بالتوازي، إعادة تدوير عميقةمراقبة شحن وتفريغ البطارية في الوقت الفعلي وتحديثات النظام عبر الإنترنت والصيانةبطارية فوسفات الحديد الليثيوم (LFP)، تعتمد حزمة البطارية والنظام على محلول إطفاء الحرائق بالهباء الجوي
