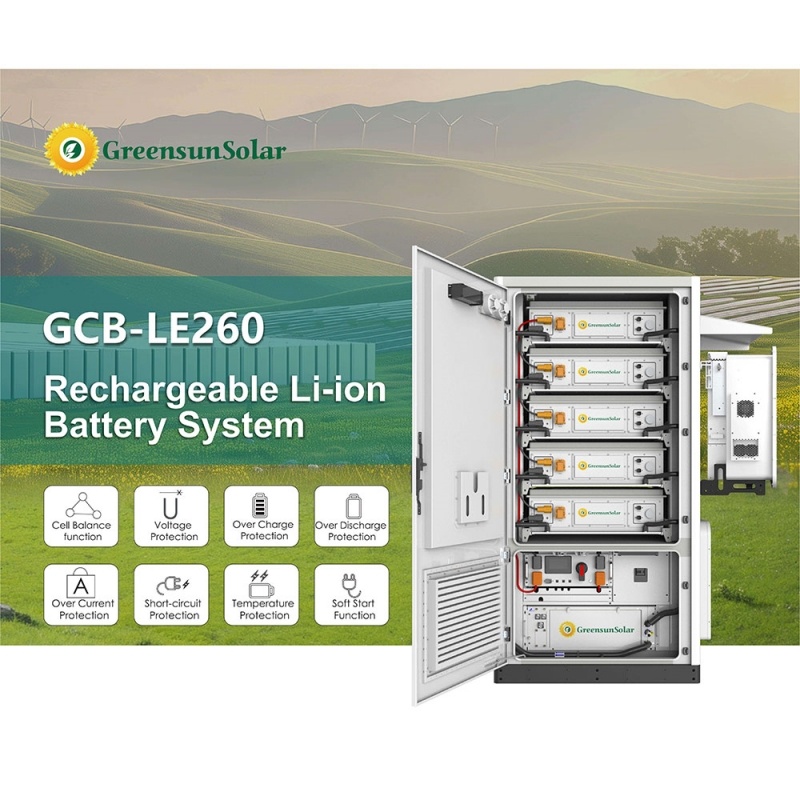

Greensun Solar Own Manufacturer Lithium Battery Cabinet Solution BESS 261KWH Liquid Cooling
Rechargeable Li-ion Battery System with PCS 125KW, Support max 10 sets in parallel, Deeply Recycle
Real-time monitoring of battery charging and discharging, online system updates and maintenance
Lithium Iron Phosphate(LFP)Battery, The battery pack and system adopt an aerosol fire extinguishing solution
رقم الصنف :
GCB-LE260النظام (موك) :
1 مجموعةقسط :
T/T، Alibaba Online، L/C عند الاطلاع، إلخأصل المنتج :
الصين، آنهويلون :
أبيض (مقبول OEM)ميناء الشحن :
شنغهاي وشنتشن ونينغبومهلة :
1-10 مجموعات، 35 يومًا؛ >10 مجموعات، سيتم مناقشتها.وزن :
2560 كجمHigh Voltage Liquid Cooling Lithium Battery Solution 261kWH 125kW PCS Deeply Cycle
| Parameters | |
| Model | GCB-LE260 |
| AC Side | |
| Rated AC Power | 125kW |
| Rated AC Output Voltage |
3/N/PE, 220V /380V, 230V /400V
|
|
Rated AC Output Frequency
|
50Hz /60Hz
|
|
Max AC Current
|
189.9A / 180.4A
|
|
Power factor
|
> 0.99 (0.8 leading - 0.8 lagging)
|
|
THDi
|
< 3%
|
|
PV Side
|
|
|
Recommended max. PV array size
|
250kW
|
|
Max. usable PV input power
|
250kW
|
|
Max. input voltage
|
1000V
|
|
Rated voltage
|
600V
|
|
Start-up voltage
|
180V
|
|
MPPT voltage range
|
150-950V
|
|
Max. input current
|
10 × 42A
|
|
Max. short circuit current
|
10 × 60A
|
|
Max. short circuit current
|
10 / 20
|
|
Battery Side
|
|
|
Battery Type
|
LFP(LiFeP04)
|
|
Nominal Energy
|
261kWh
|
|
Rated Voltage
|
832V
|
|
DC Voltage Range
|
728~949V
|
|
Rated Capacity(Ah)
|
314Ah
|
|
Max Charge/Discharge Current (A)
|
157A
|
|

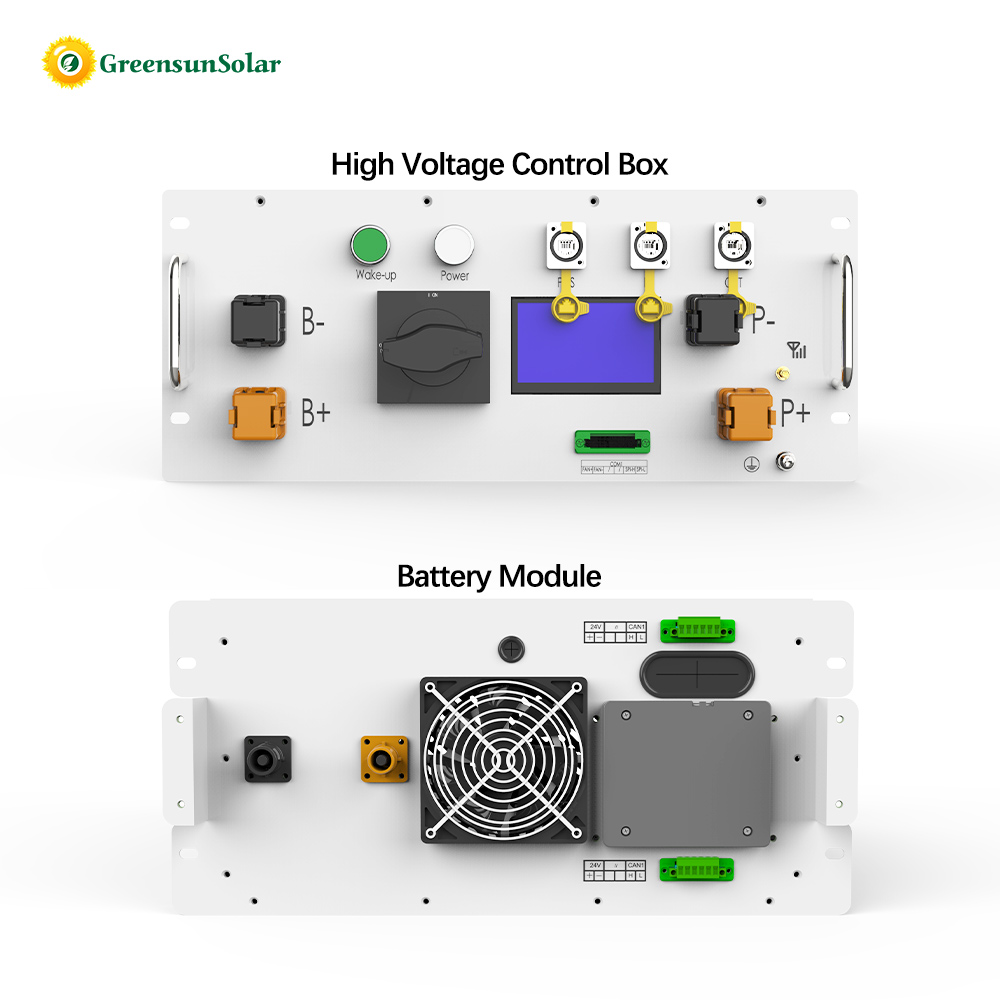

Battery Module
|
166.4V 314Ah(52.25kWh)
|
|
Battery Module Qty In Series (Optional)
|
5
|
|
System Parameter
|
|
|
Cabinet size
|
1200*1400*2105mm
|
|
Weight Approximate (kg)
|
2560kg
|
|
Installation Location
|
Floor-mounted
|
|
Protection Class
|
IP55
|
|
Altitude (m)
|
≤3000
|
|
Humidity
|
5%-95%
|
|
Cooling System
|
Liquid Cooling
|
|
Fire extinguishing
|
Aerosol
|
|
Max.parallel No.
|
10
|
|
Cycle Life
|
25±2°C, 0.5C/0.5C, EOL70% ≥8000
|
|
Certification
|
CE MSDS UN38.3
|
|
Warranty
|
10Year
|

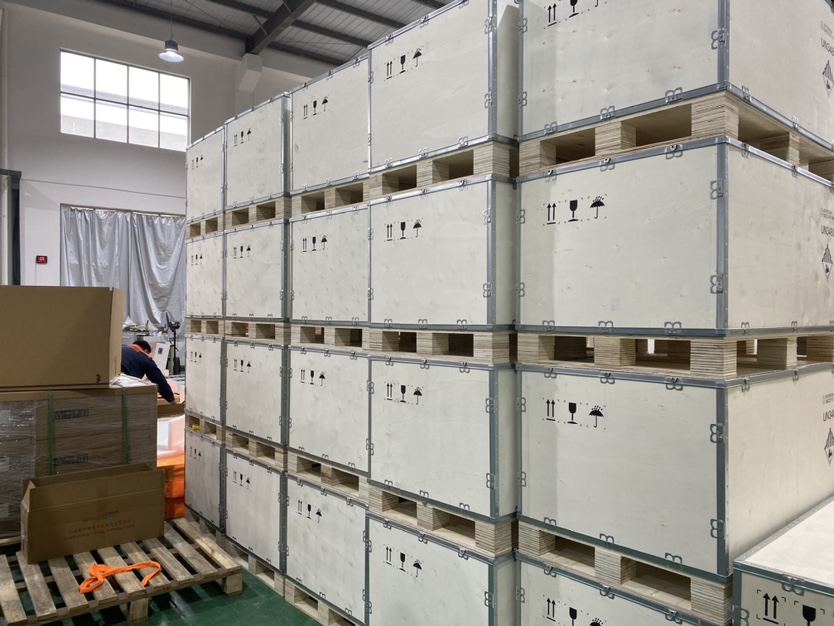

Factory & Production
Greensun Solar Energy Tech. Co., Limited is a professional, fast growing company. Greensun Solar is well known as a world leading manufacturer of cost-effective, high efficiency and good quality photovoltaic panel, storage battery, and complete solar energy system for residential and C&I application.
Our Advantage
1.We are a real factory and have strict requirements on the quality of products.
2.We provide OEM services for many leading companies around the world. we also have long-term cooperation with Solis, Deye,Growatt, Must,SMA and other tier-one brands.
3.As a factory, we have better control over product costs.
4.Both production and delivery are very fast.
5. Also, we provide stable and long-term after-sales service.
Why Choose Greensun Lithium Battery
In the photovoltaic energy storage sector,
lithium batteries offer significant advantages over traditional lead-acid batteries.
It offer increased safety, compact size, light weight, and fast charging.
It also offer lower self-discharge rates and higher energy density.
And also more user-friendly and have a longer lifespan.
We accept customized requests for this type of lithium battery and can configure and produce it according to your specific requirements.
Currently, our lithium battery products utilize A+ grade quality cells and do not use second-hand cells.
Each lithium battery undergoes multiple tests before shipment, including but not limited to cell voltage, cell current, battery voltage and current, and charge and discharge tests.
This ensures that our products meet the needs of mid-range and high-end customers.
We also offer a 10-year warranty.
Depending on the specific situation, our dedicated team of engineers can resolve customer issues through program upgrades, individual cell replacements, BMS replacements, or even complete battery replacements.
Our lithium-ion battery products have been exported to numerous countries, including but not limited to the United States, Canada, Puerto Rico, Germany, Poland, Belgium, the Philippines, Saudi Arabia, South Africa, Nigeria, and more.
If you have any lithium-ion battery needs,
You can write to us below⬇️⬇️⬇️，and contact us directly.
We will tailor a specific energy storage product to meet your specific needs.
Greensun Solar Own Manufacturer Lithium Battery Cabinet Solution BESS 261KWH Liquid Cooling Rechargeable Li-ion Battery System with PCS 125KW, Support max 10 sets in parallel, Deeply Recycle Real-time monitoring of battery charging and discharging, online system updates and maintenance Lithium Iron Phosphate(LFP)Battery, The battery pack and system adopt an aerosol fire extinguishing solution
