BESS Outdoor all in one cabinet

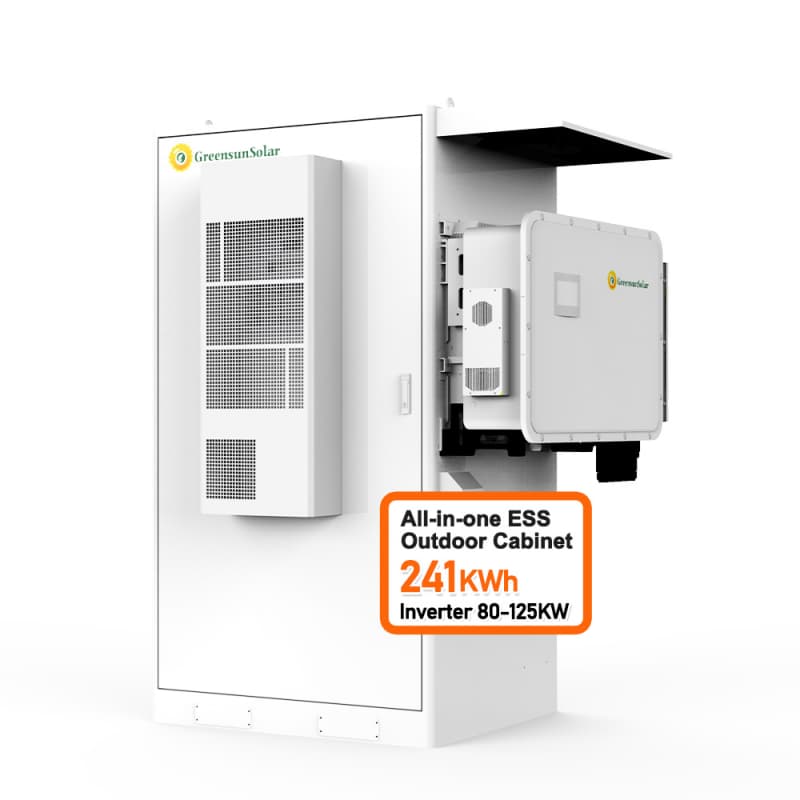

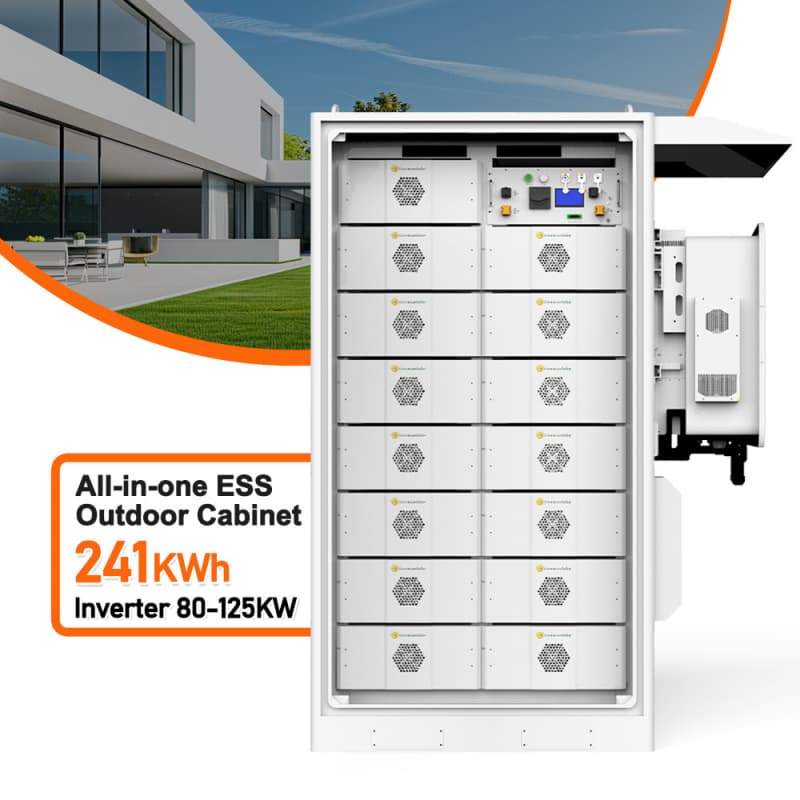

 241KWH Lithium Battery BESS All In One Cabinet for energy storage system
All in one energy storage cabinet
ESS 241kWh solar system

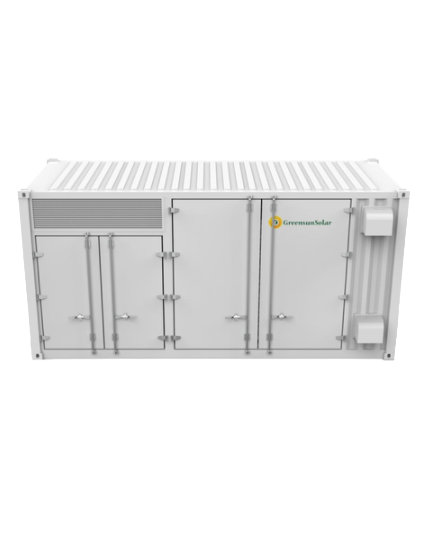

BESS Container manufacturer
All in one outdoor lithium battery
solar hybrid all in one system

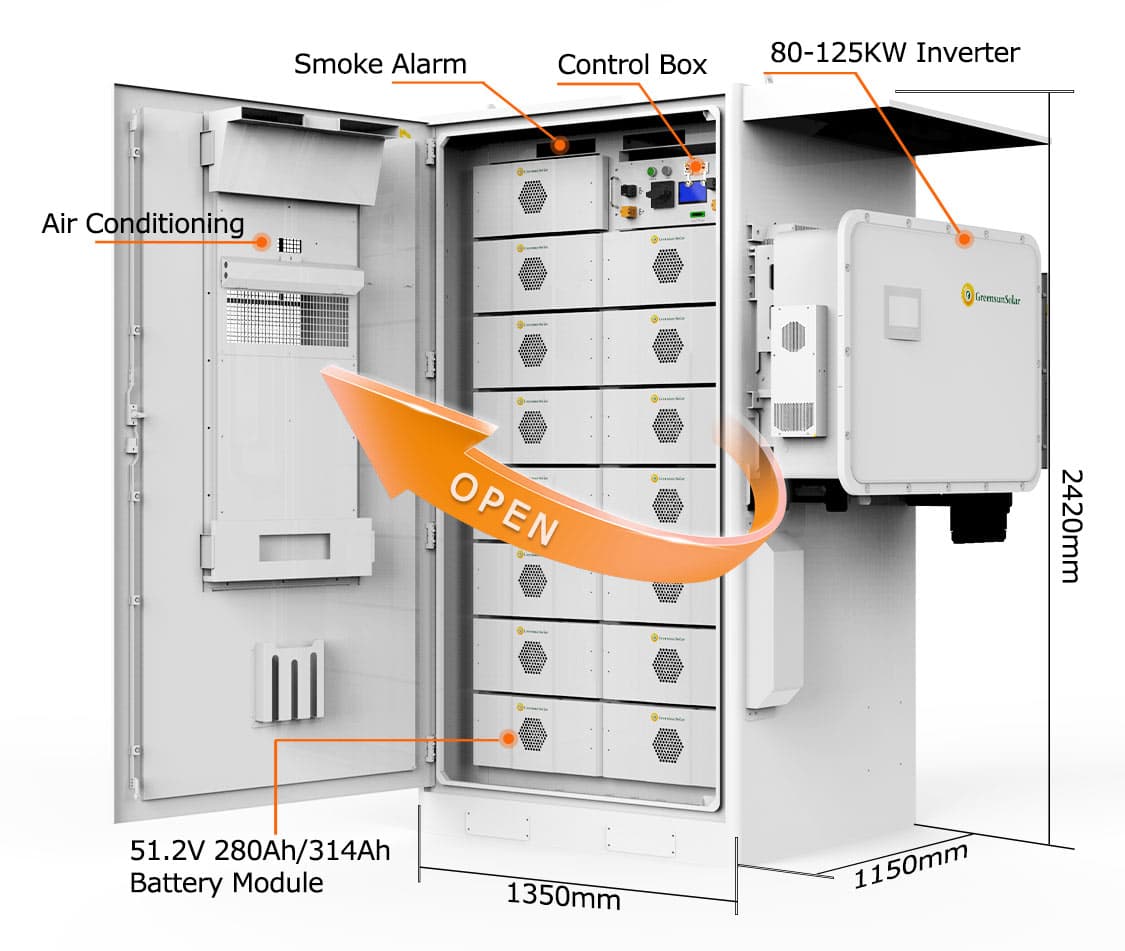

241KWH Lithium Battery BESS All In One Cabinet for energy storage system

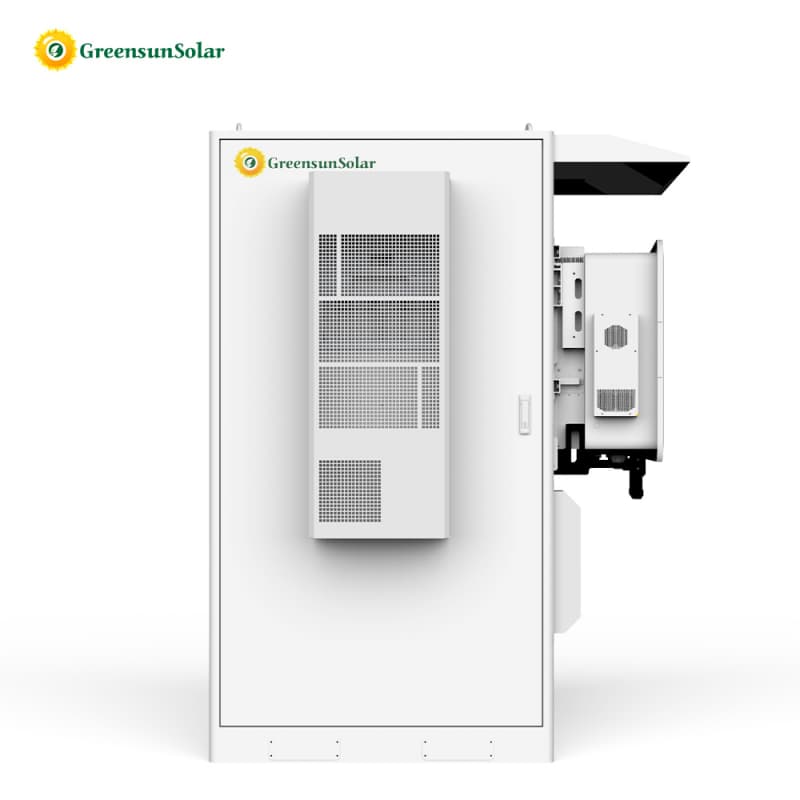

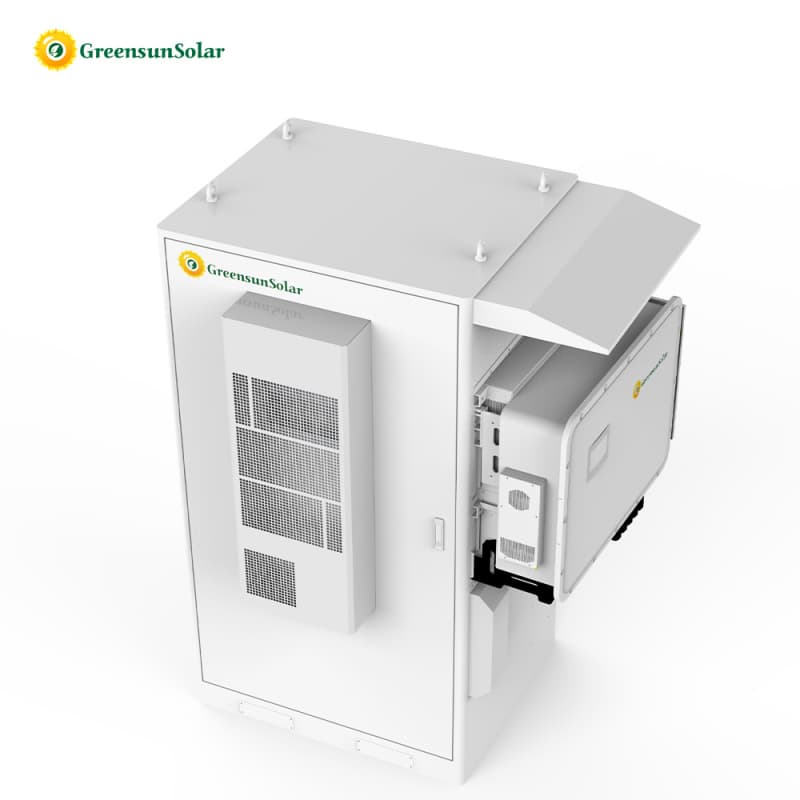

Greensun All in one outdoor cabinet

Lithium iron phosphate ( LFP ) batteries, battery packs
and systems all use aerosol fire suppression solutions

EMS, hybrid inverter and BMS integration technology
Power supply redundancy design
Support for black start function, off-grid operation

Supports up to 10 sets in parallel

  • رقم الصنف :

    241KWH BESS Outdoor all in one cabinet

  • النظام (موك) :

    Negotiable

  • قسط :

    T/T, etc

  • أصل المنتج :

    China

  • لون :

    White

  • ميناء الشحن :

    Shanghai, Ningbo, Shenzhen

  • مهلة :

    5-15 Days

  • وزن :

    According to Capacity
مطلوب الان
فئات المنتج
منتجات جديدة

241KWH Lithium Battery BESS All In One Cabinet for energy storage system

BESS system for solar

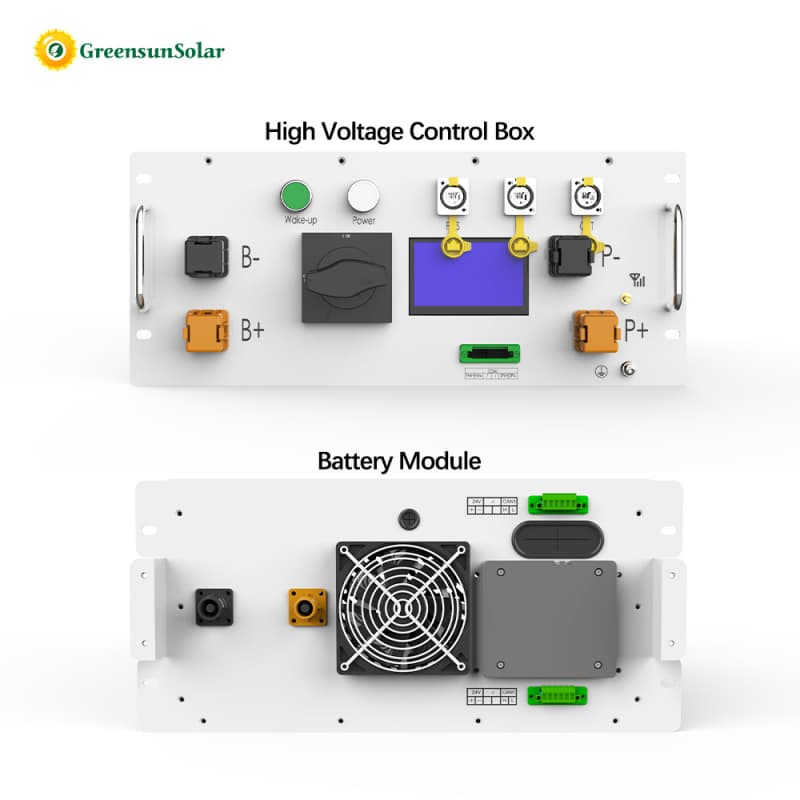

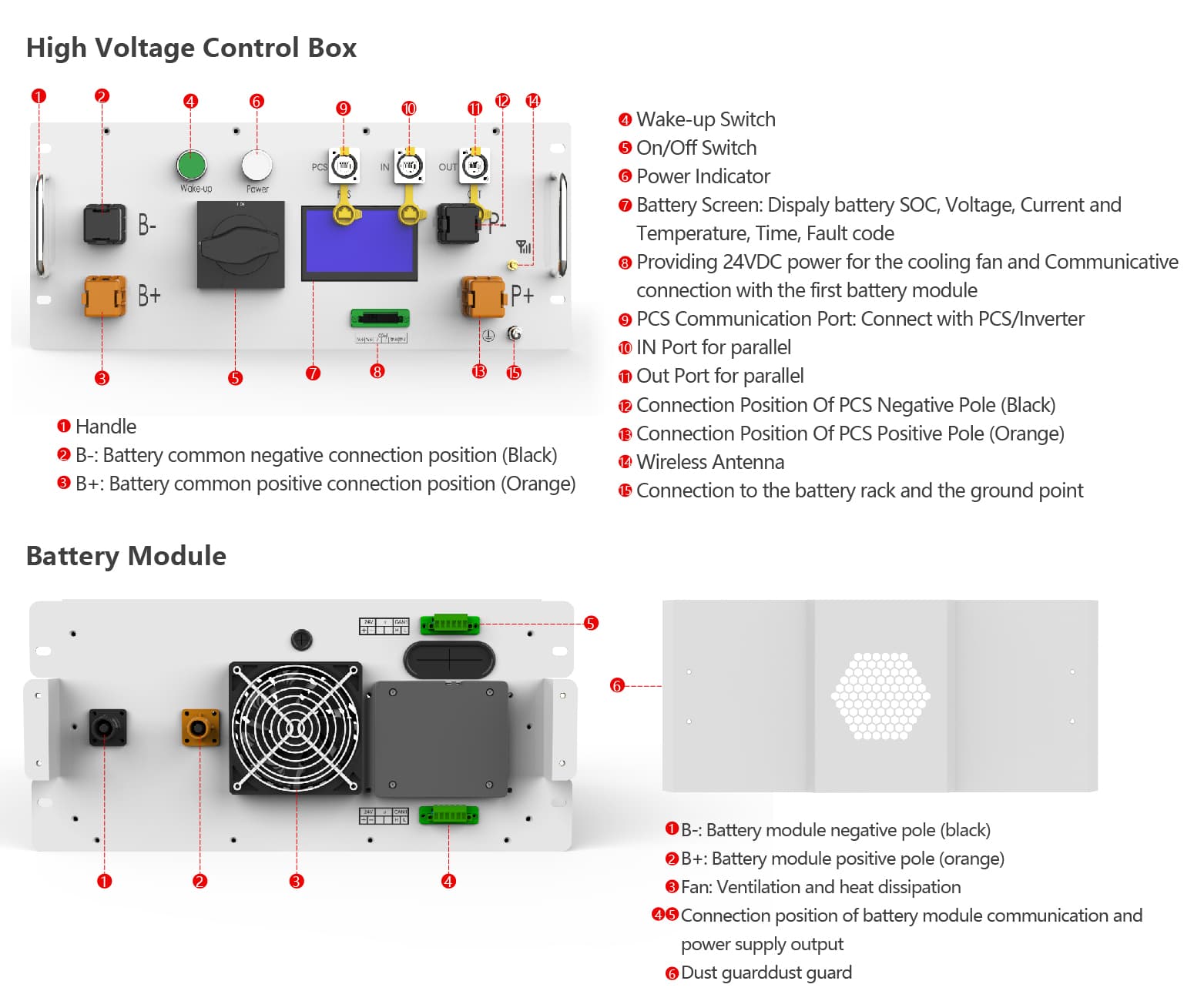

High voltage control box for hv

All-in-one Energy & Device Management Platform

Solar wifi monitoring software



241KWH Lithium Battery BESS All In One Cabinet Datasheet for Review

Model  GCB-E240
Cell Chemistry
LiFePO4
Module Energy (kWh)
16.076
Module Nominal Voltage (V)
51.2
Module Capacity (Ah)
 314
Battery Module Qty In Series
 15
System Nominal Voltage ( V )
768
System Operating Voltage ( V )
672V~852V
System Energy (kWh)
241.15
System Usable Energy (kWh) 90%
 217.03
Charge/Discharge
Current(A)
 157A
Dimension (W*D*H, mm)
1150*1350*2420mm
Weight Approximate (kg)
3000kg
Installation Location
Floor-Mounted
Cycle Life
25±2℃, 0.5C/0.5C, DOD80%≥6000
Optional inverter specifications (for example)
 GCB-E240-80KW GCB-E240-100KW GCB-E240-125KW
Nominal Output Power / UPS Power
 80KW 100KW 125KW
AC Output Frequency and Voltage
50Hz/60Hz; 220V/380V,230V/400V
Grid Type
3L/N/PE
Number of Parallel ( Off-grid )
10
Battery Operating Voltage ( V )
672V~852V
Max. PV Input Power
160kw
200kw
250kw
Max. PV Input Current ( A )
10 X 42A
Rated PV Input Voltage ( Vdc )
1000
Start Up DC Voltage ( Vdc )
180
MPPT Voltage Range ( Vdc )
150-950V
Max. PV Short-circuit Current ( A )
10 X 60A
Number of MPPT
10/20
Inverter Communication
CAN, RS485-115200, Ethernet, Optional: Wi-Fi, Cellular, LAN

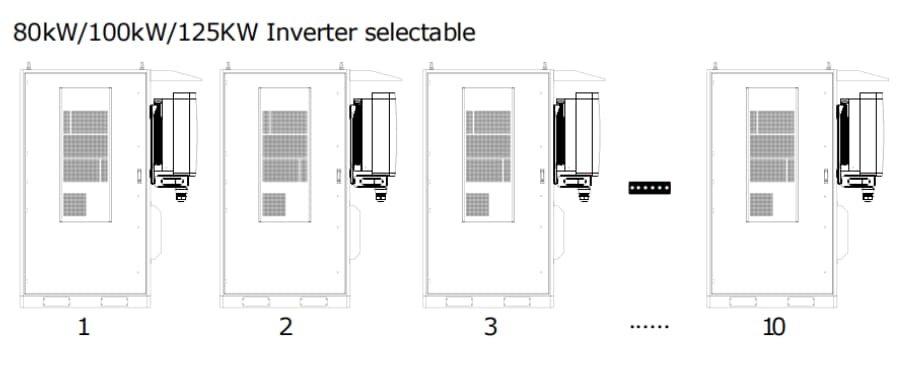

System Composition&Expansion

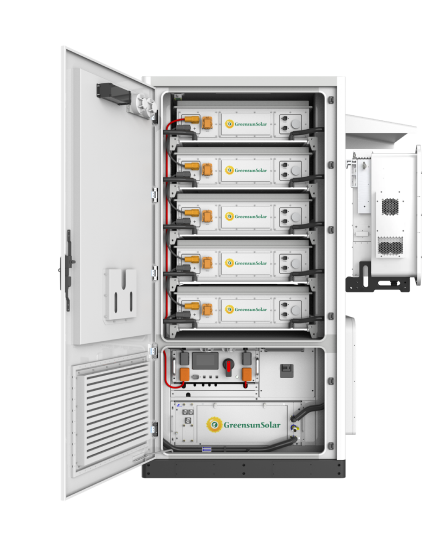

BESS Outdoor cabinet

solar panel parallel connection

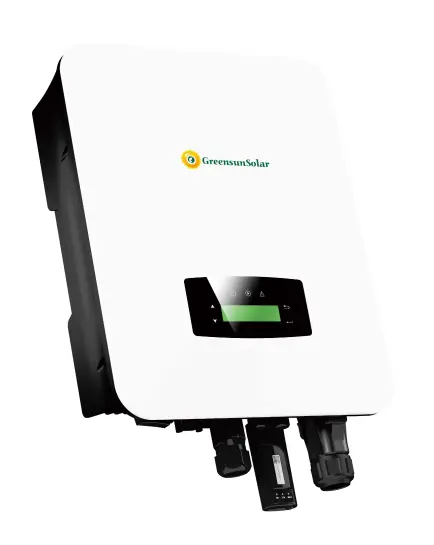

Matching Inverter Brand

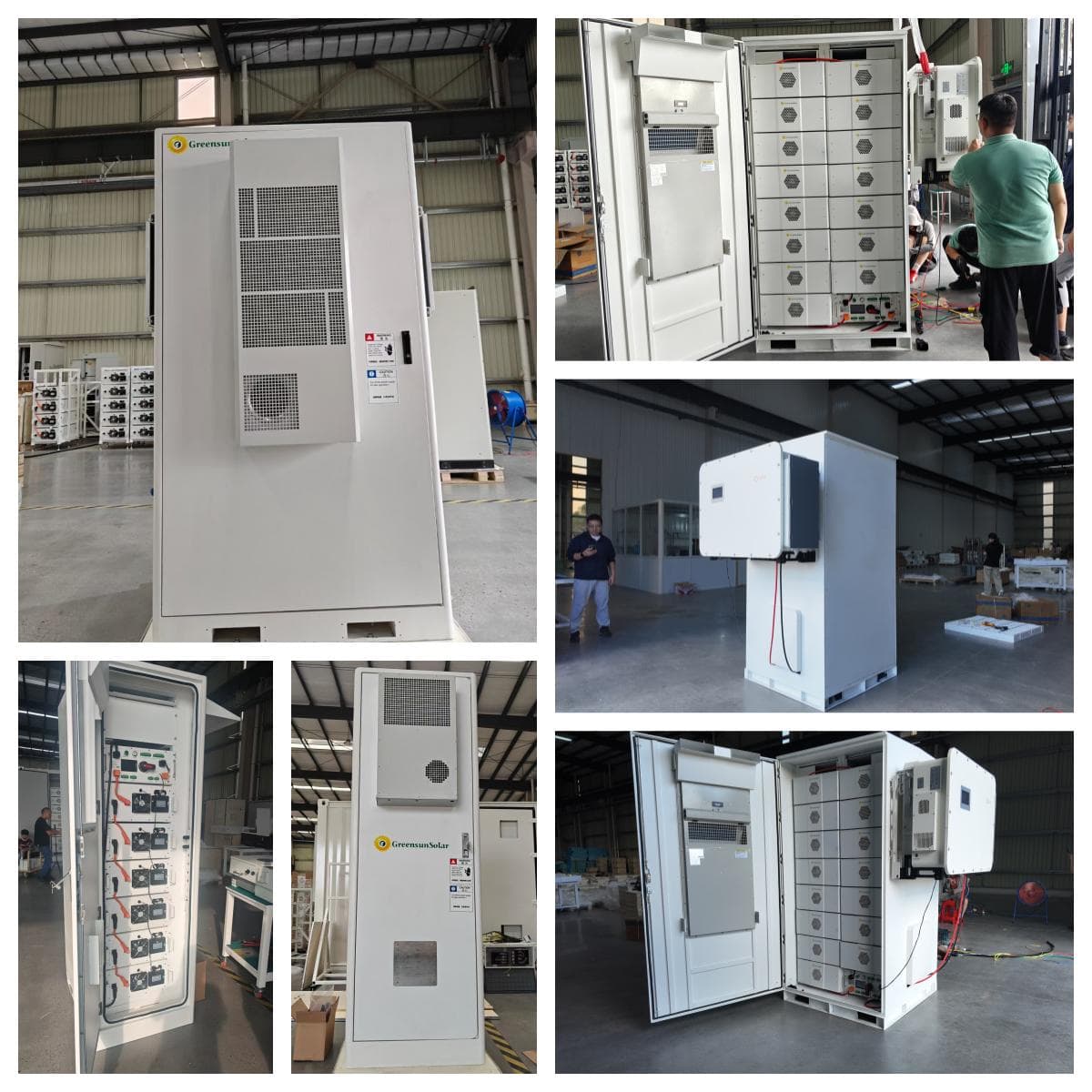

Factory&Products

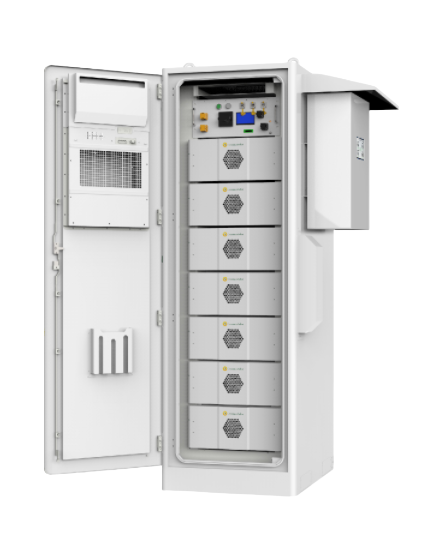

Outdoor energy storage cabinet

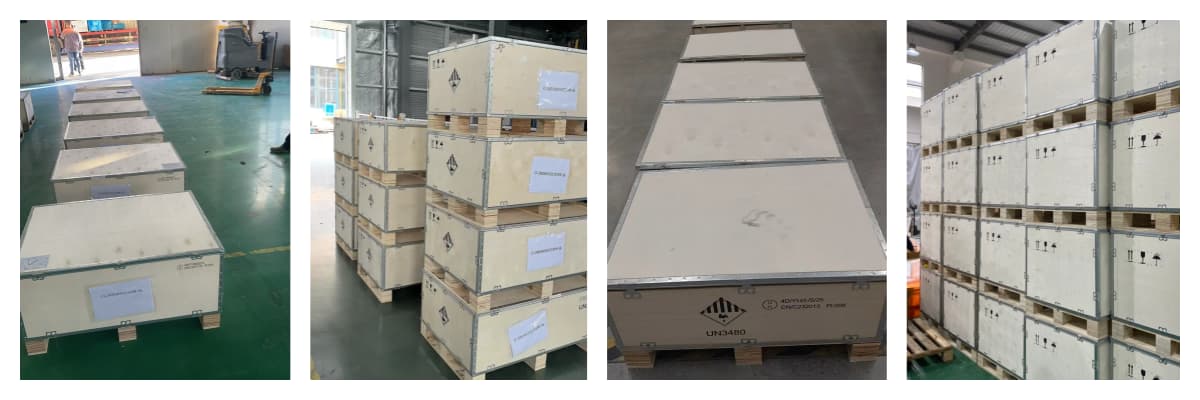

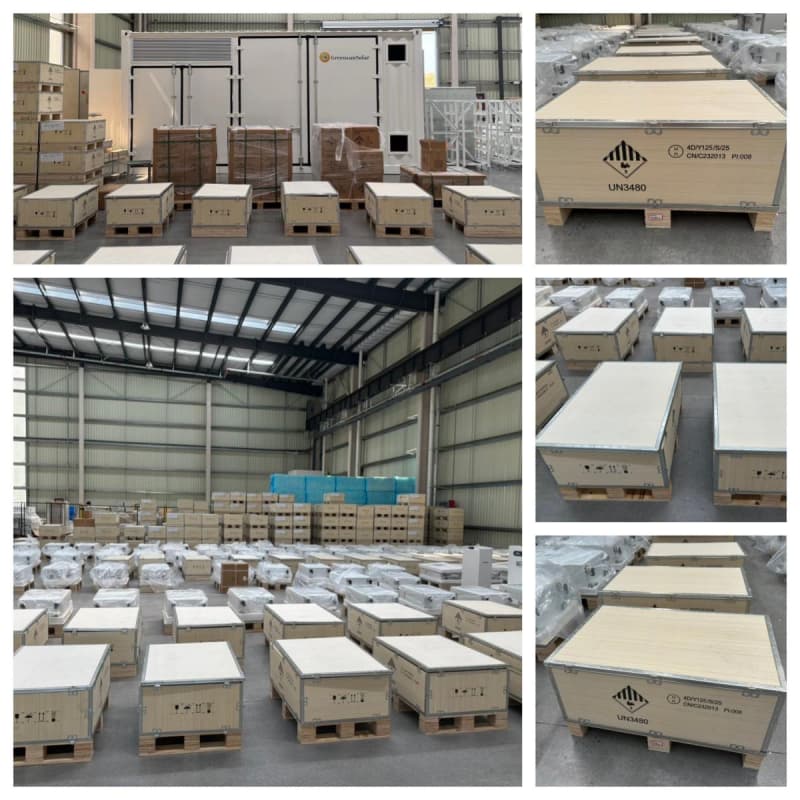

International Standard Lithium Battery Transportation packaging
un38.3 standard
UN 38.3 Testing for Lithium Batteries

Our Advantages

1. We are a real factory and have strict requirements on the quality of products.

2. We provide OEM services for many leading companies around the world.
we also have long-term cooperation with Solis, Deye,Growatt, Must,SMA and other tier-one brands.

3. As a factory, we have better control over product costs.

4. Both production and delivery are very fast.

5. Also, we provide stable and long-term after-sales service.


Why Choose Greensun Lithium Battery
In the photovoltaic energy storage sector,

lithium batteries offer significant advantages over traditional lead-acid batteries.

It offer increased safety, compact size, light weight, and fast charging.

It also offer lower self-discharge rates and higher energy density.

And also more user-friendly and have a longer lifespan.


We accept customized requests for this type of lithium battery and can configure and produce it according to your specific requirements.

Currently, our lithium battery products utilize A+ grade quality cells and do not use second-hand cells.

Each lithium battery undergoes multiple tests before shipment, including but not limited to cell voltage, cell current, battery voltage and current, and charge and discharge tests.

This ensures that our products meet the needs of mid-range and high-end customers.


We also offer a 10-year warranty.

Depending on the specific situation, our dedicated team of engineers can resolve customer issues through program upgrades, individual cell replacements, BMS replacements, or even complete battery replacements.

Our lithium-ion battery products have been exported to numerous countries, including but not limited to the United States, Canada, Puerto Rico, Germany, Poland, Belgium, the Philippines, Saudi Arabia, South Africa, Nigeria, and more.

Our products comply with major market certifications such as CE, ISO, MSDS, and UN38.3.


If you have any lithium-ion battery needs,
You can write to us below⬇️⬇️⬇️，and contact us directly.
We will tailor a specific energy storage product to meet your specific needs.
