 100Ah High Voltage Stackable lithium battery for solar
stackable lifepo4 battery
High voltage Lithium Battery
51.2V 100Ah high voltage battery
REPT battery cells
51.2v high voltage battery
Energy Storage System

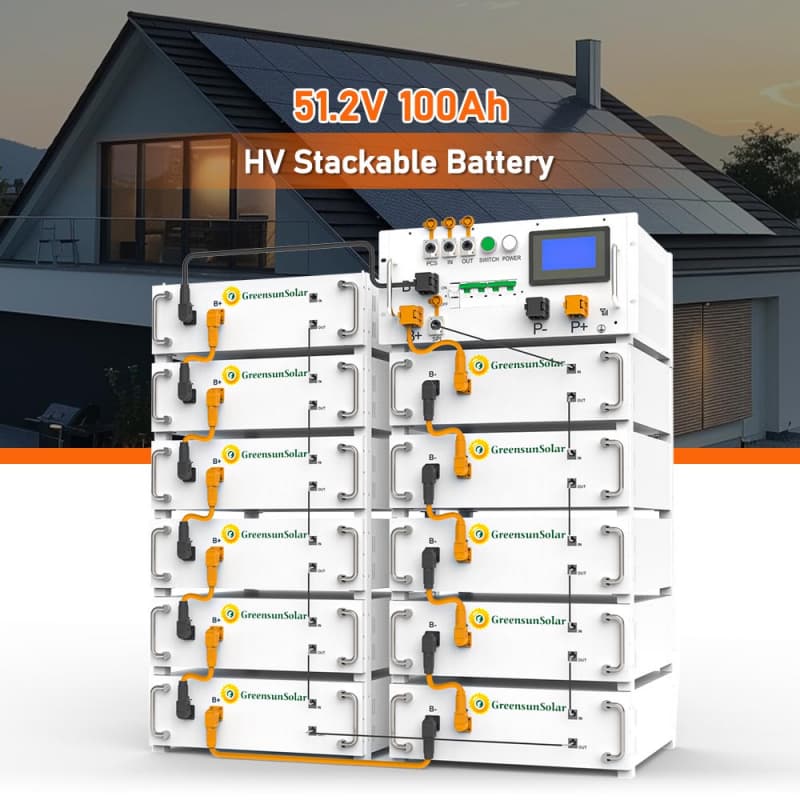

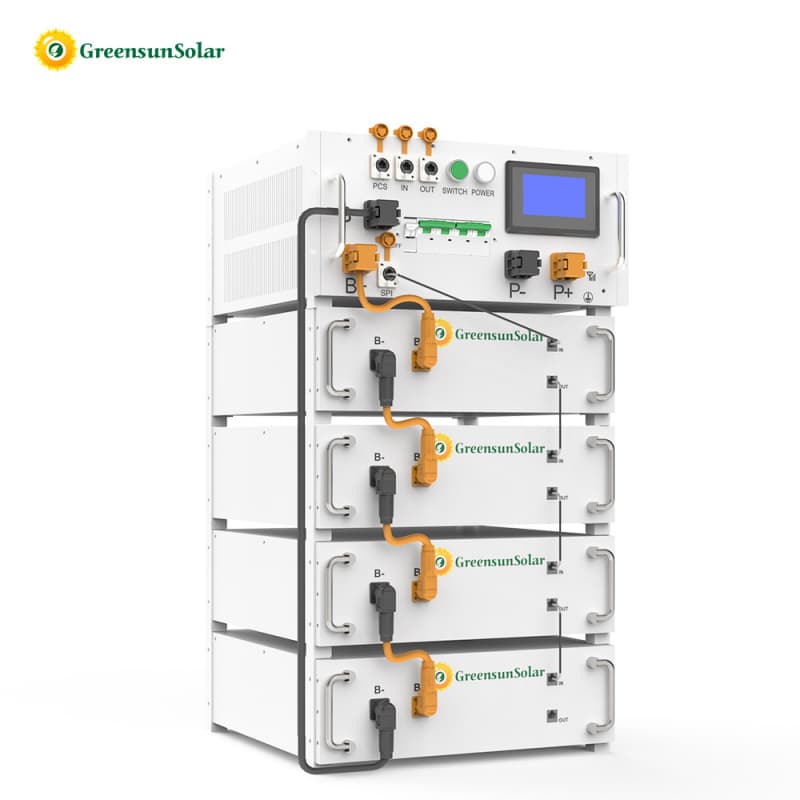

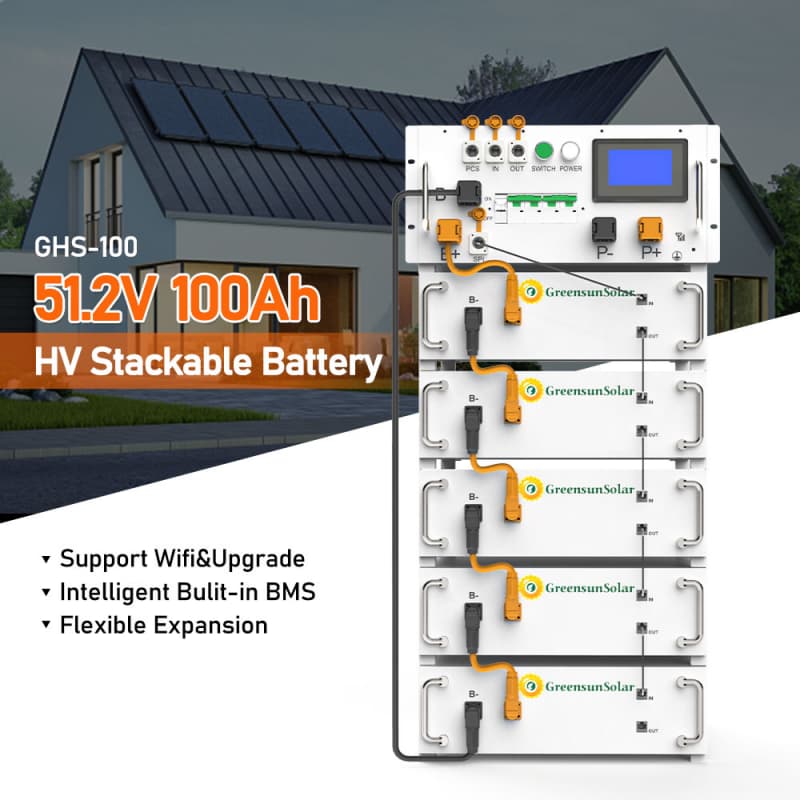

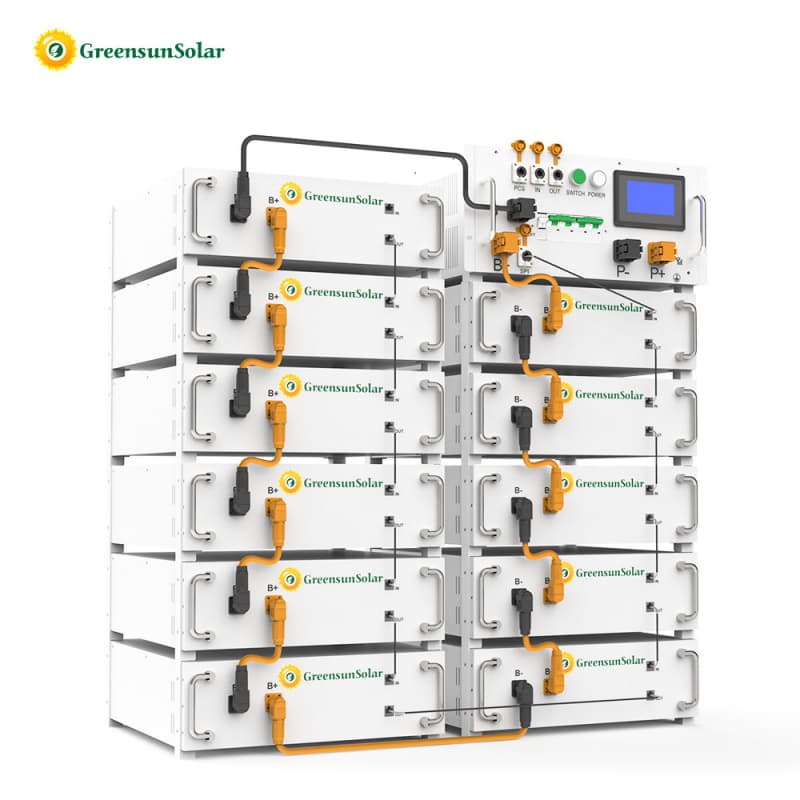

100Ah High Voltage Stackable lithium battery for solar

LiFePO4 Batteries with safety performance and long

Intelligent BMS

Suppor 3-16 packs in series as one cluster,

max 5 clusters in parallel

Support Wifi&Upgrade

Wi-Fi module, real-time data monitoring

Support USB upgrade, remote upgrade

Economical&Convenient

Stackable design for easy installation and maintenance

  • ماركة :

    Greensun Solar

  • اسم المنتج :

    Stackable HV Lithium battery

  • الجهد الاسمي :

    51.2V

  • القدرة الاسمية :

    100Ah

  • نوع الخلية :

    REPT,EVE, GREAT POWER Grade A Lifepo4 battery cells

  • دورة الحياة :

    DOD80%≥6000

  • نظام إدارة البطاريات :

    Integrated Smart BMS

  • تواصل :

    CAN/RS485

  • ضمان :

    10 years

  • شهادة :

    CE/UN38.3/MSDS
مطلوب الان
فئات المنتج
منتجات جديدة

Greensun High Voltage Lithium Battery System

high voltage lithium ion battery

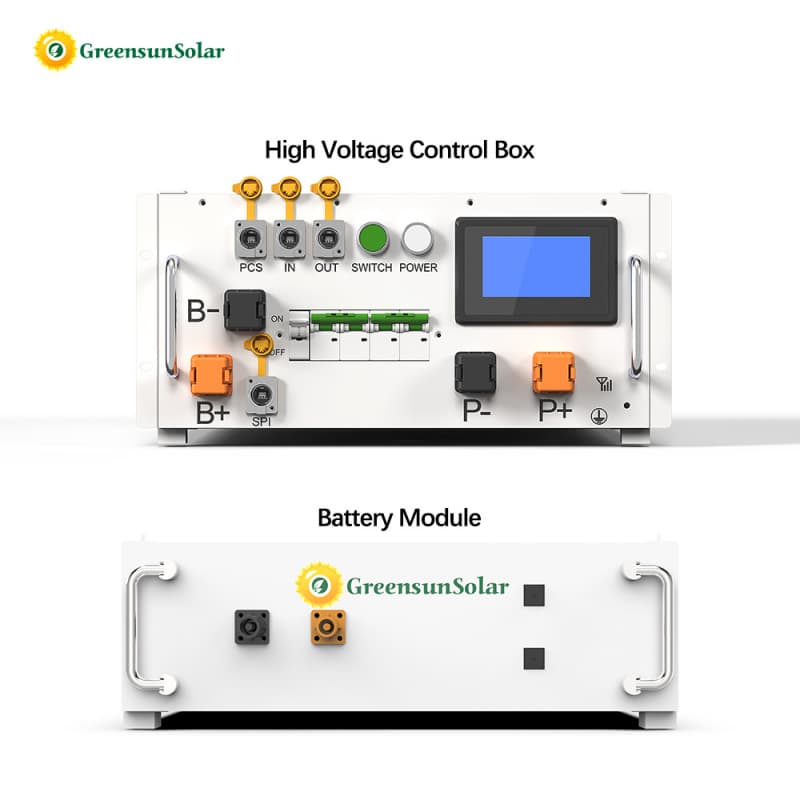

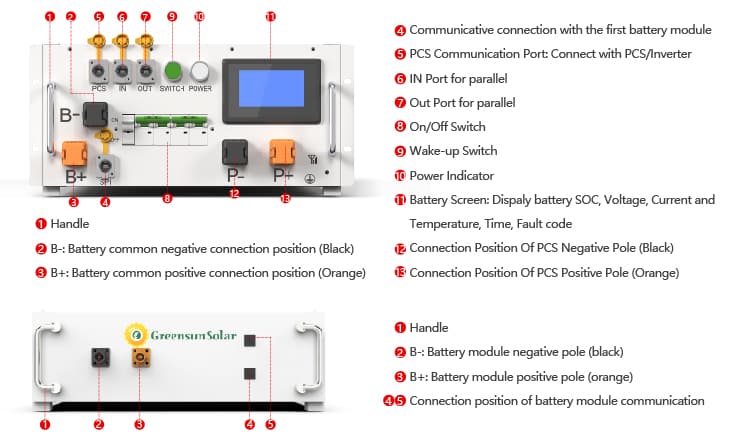

High Voltage Controller Box

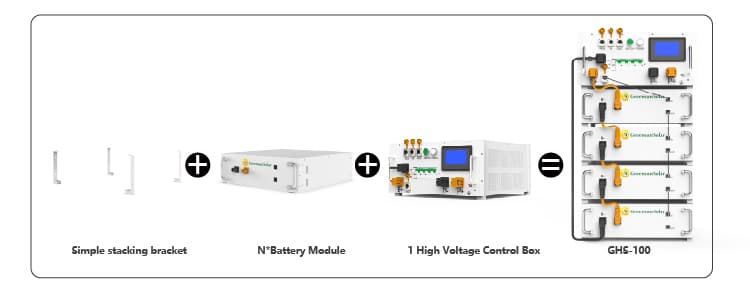

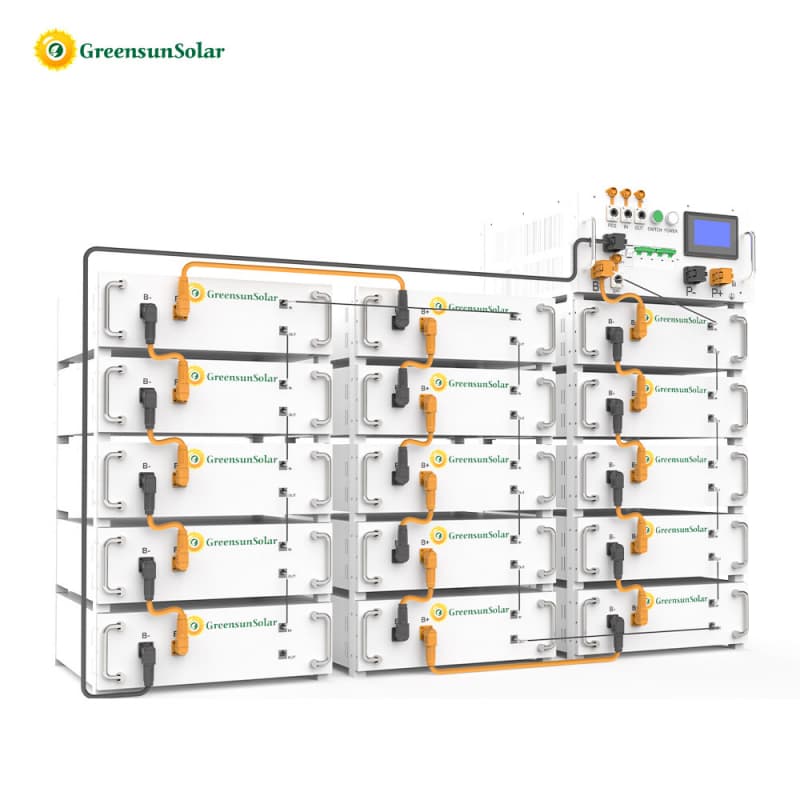

lithium battery installation

BMS WIFI remote monitoring

Bms wifi monitor app



High Voltage 100Ah Battery Datasheet for Review

Battery Module Model GHS-100
Cell Chemistry
LiFePO4
Module Energy (kWh)
5.12
Module Nominal Voltage (V)
 51.2
Module Capacity (Ah)
 100
ITEM GHS-100-E51 GHS-100-E56 GHS-100-E61 GHS-100-E66 GHS-100-E71 GHS-100-E76
Battery Module Qty In Series ( Optional )
 10 11 12 13 14 15
System Nominal Voltage (V)
512.0
563.2
614.4
665.6
716.8
768.0
System Operating Voltage (V)
448V~568V
493V~625V
538V~682V
582V~738V
627V~795V
672V~852V
System Energy (kWh)
51.20
56.32
61.44
66.56
71.68
76.8
Charge/Discharge
Current(A)
 50A
LCD Display
SOC/ Voltage/Tem/Time/Fault Code
Working Temperature (°C)
Charge:0~55/Discharge :-20-55
Status Indicator
Wake Up/Power light
Communication Port
CAN/RS485
Dimension (W*D*H, mm)
1000*475*1035
1000*475*1035
1000*475*1192
1500*475*878
1500*475*878
1500*475*1035
Weight Approximate (kg)
428kg
468.8kg
509.6kg
550.4kg
591.2kg
632kgInstallation Location
Installation Location
Rack Mounting
Storage Temperature (°C)
0~35°C
Recommend Depth of Discharge
90%
Cycle Life
25±2℃, 0.5C/0.5C, DOD80%≥6000
Warranty
10 years
Certification
CE/UN38.3/MSDS

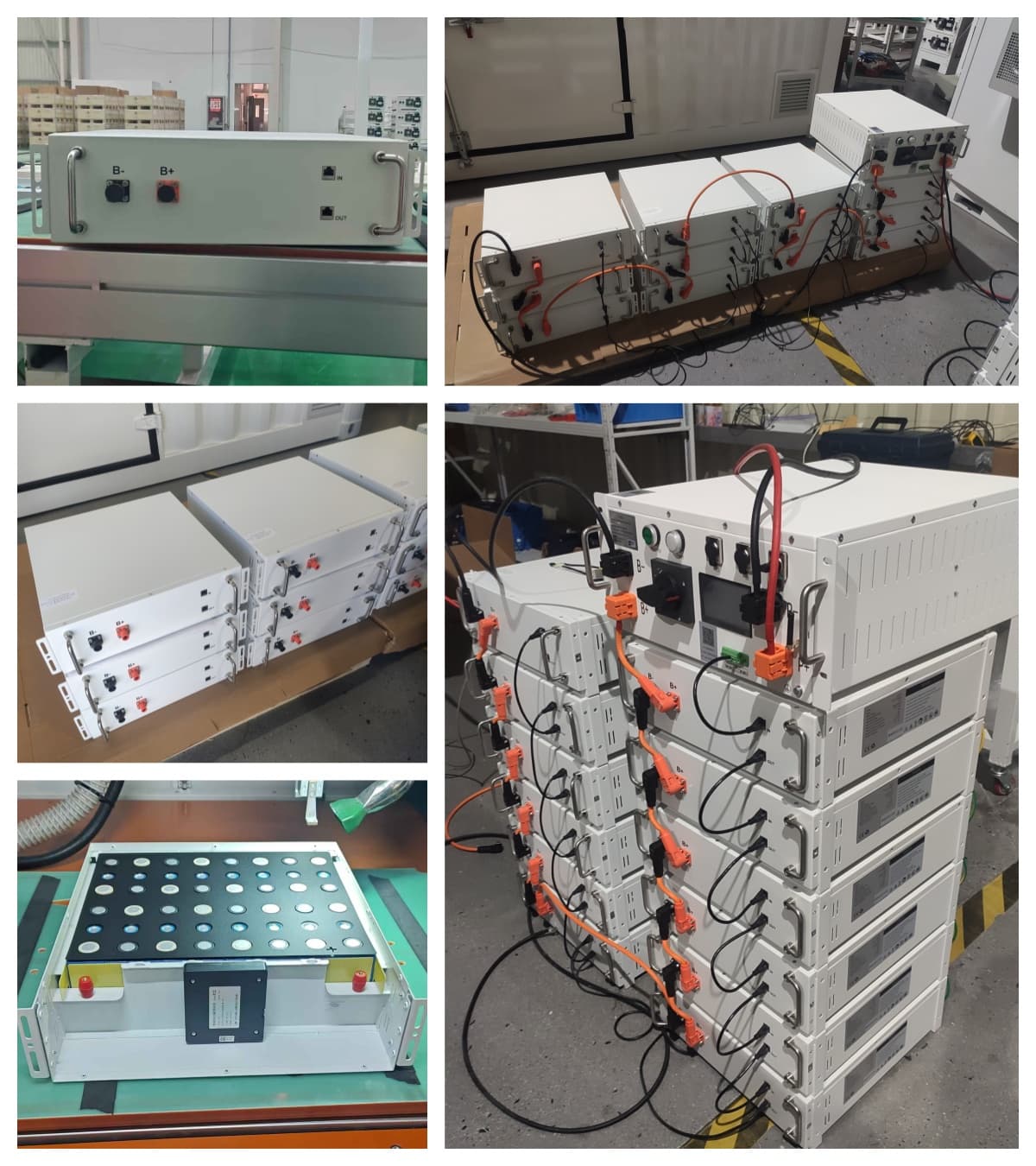

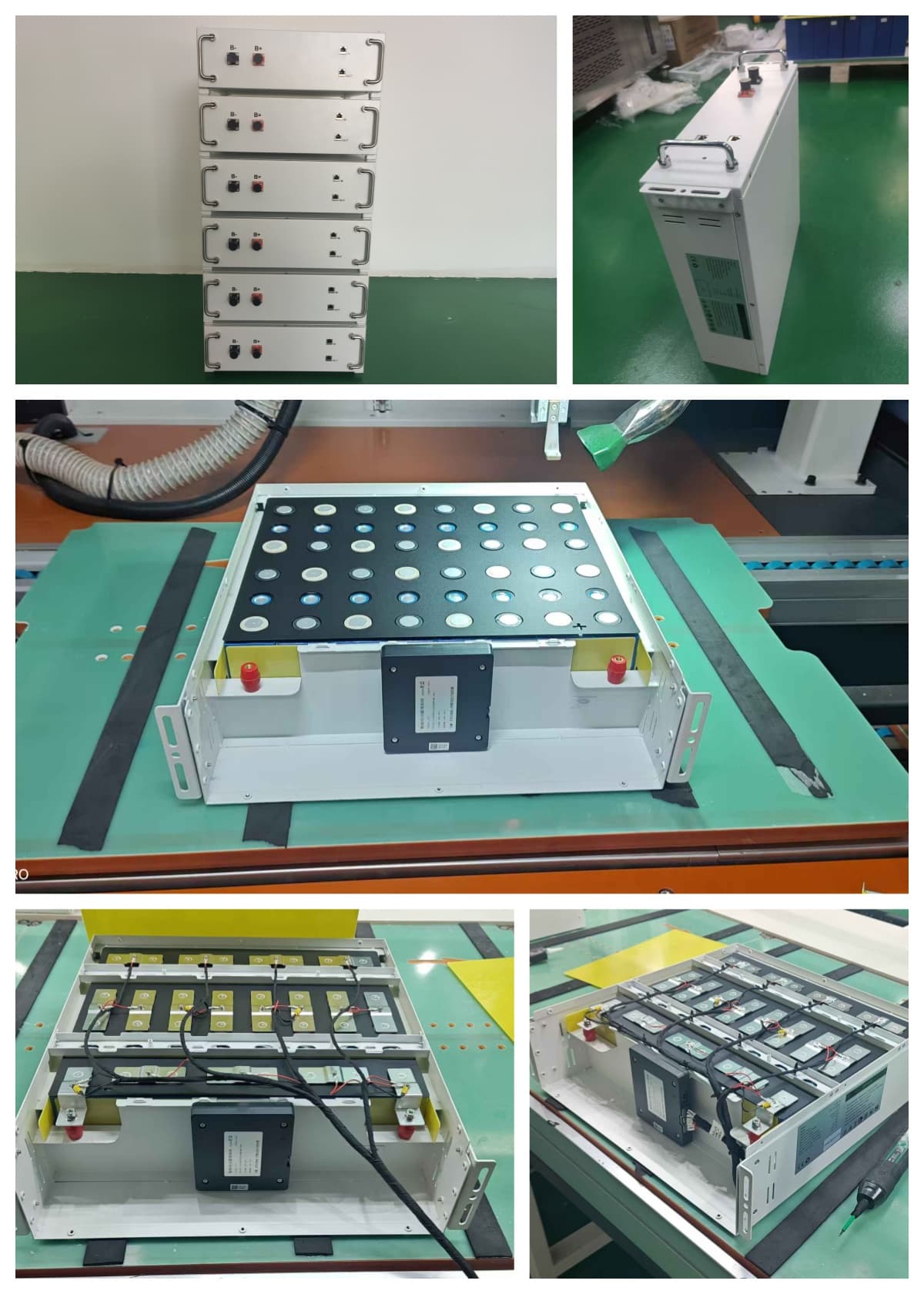

Products display

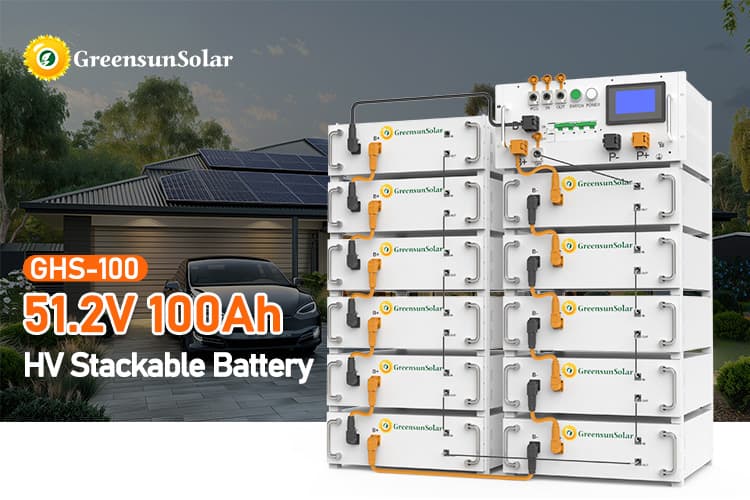

battery energy storage system
High voltage Lithium battery

Our Advantages

1. We are a real factory and have strict requirements on the quality of products.

2. We provide OEM services for many leading companies around the world.
we also have long-term cooperation with Solis, Deye,Growatt, Must,SMA and other tier-one brands.

3. As a factory, we have better control over product costs.

4. Both production and delivery are very fast.

5. Also, we provide stable and long-term after-sales service.


Why Choose Greensun Lithium Battery
In the photovoltaic energy storage sector,

lithium batteries offer significant advantages over traditional lead-acid batteries.

It offer increased safety, compact size, light weight, and fast charging.

It also offer lower self-discharge rates and higher energy density.

And also more user-friendly and have a longer lifespan.


We accept customized requests for this type of lithium battery and can configure and produce it according to your specific requirements.

Currently, our lithium battery products utilize A+ grade quality cells and do not use second-hand cells.

Each lithium battery undergoes multiple tests before shipment, including but not limited to cell voltage, cell current, battery voltage and current, and charge and discharge tests.

This ensures that our products meet the needs of mid-range and high-end customers.


We also offer a 10-year warranty.

Depending on the specific situation, our dedicated team of engineers can resolve customer issues through program upgrades, individual cell replacements, BMS replacements, or even complete battery replacements.

Our lithium-ion battery products have been exported to numerous countries, including but not limited to the United States, Canada, Puerto Rico, Germany, Poland, Belgium, the Philippines, Saudi Arabia, South Africa, Nigeria, and more.

Our products comply with major market certifications such as CE, ISO, MSDS, and UN38.3.


If you have any lithium-ion battery needs,
You can write to us below⬇️⬇️⬇️，and contact us directly.
We will tailor a specific energy storage product to meet your specific needs.
