بطارية ليثيوم الرف المكدس

 200Ah 280Ah 314Ah High Voltage Stackable lithium battery for solar
stackable lifepo4 battery
High voltage Lithium battery for solar
stackable battery storage
314Ah Energy Storage Battery Pack

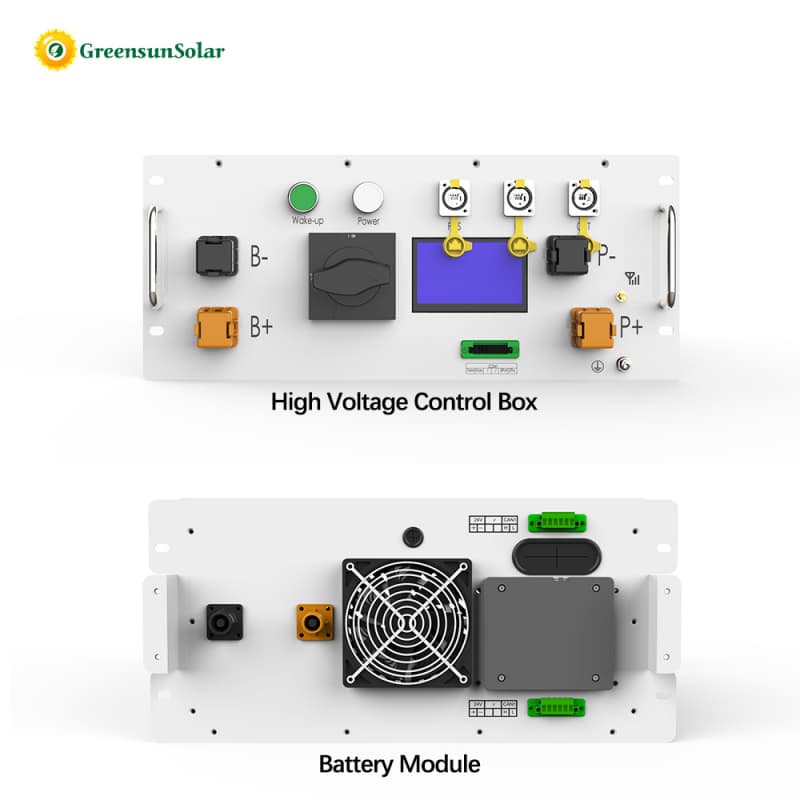

High Voltage BMS control Box

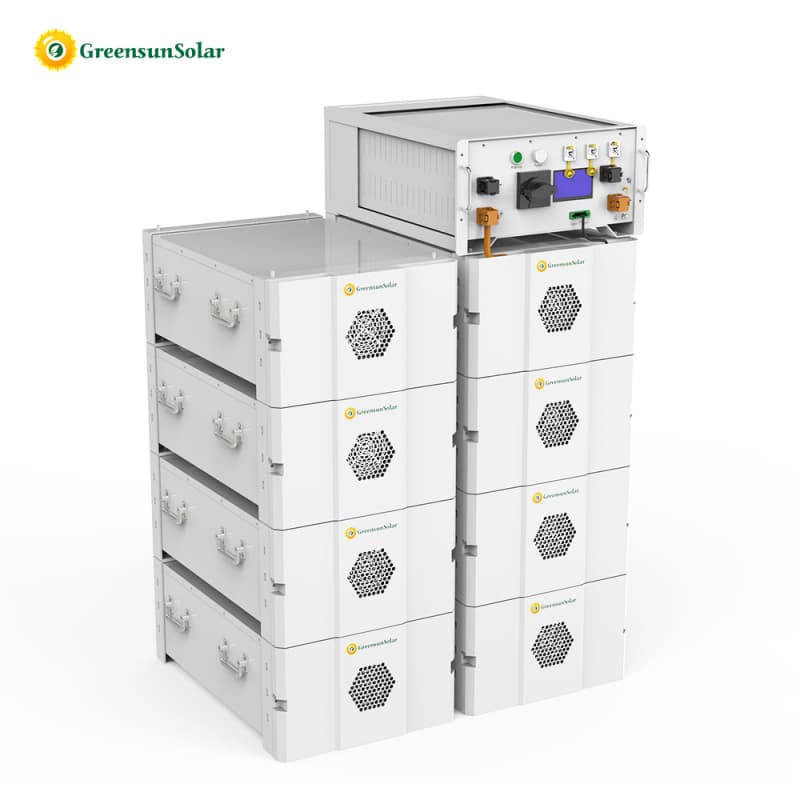

stackable lithium battery pack

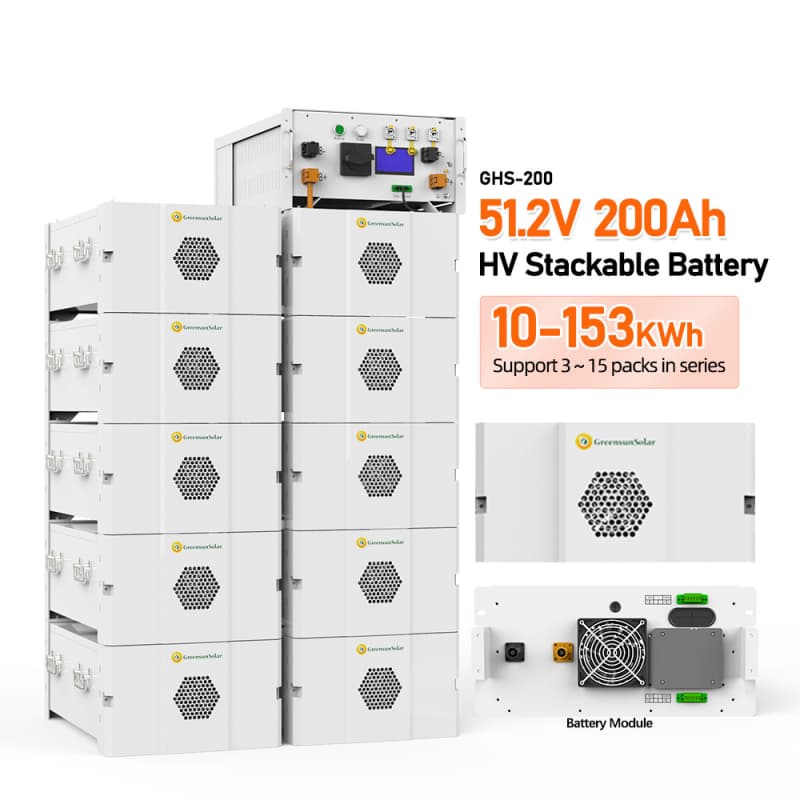

200Ah 280Ah 314Ah High Voltage Stackable lithium battery for solar

Support  3-15 packs in series as one cluster,
max 10 clusters in parallel
Low self-discharge up to 6 months

  • ماركة :

    Greensun Solar

  • اسم المنتج :

    Stackable HV Lithium battery

  • الجهد الاسمي :

    51.2V

  • القدرة الاسمية :

    200Ah,280Ah,314Ah

  • نوع الخلية :

    REPT,EVE, NETC Grade A Lifepo4 battery cells

  • دورة الحياة :

    DOD80%≥6000

  • نظام إدارة البطاريات :

    Integrated Smart BMS

  • تواصل :

    CAN/RS485

  • ضمان :

    10 years

  • شهادة :

    CE/UN38.3/MSDS
مطلوب الان
فئات المنتج
منتجات جديدة

Greensun High Voltage Lithium Battery System

high voltage lithium ion battery

High Voltage Controller Box

lithium battery installation

BMS WIFI remote monitoring

Bms wifi monitor app



High Voltage 200Ah 280Ah 314Ah Battery Datasheet for Review

Battery Module Model
GHS-200
GHS-280
GHS-314
Cell Chemistry
LiFePO4
Module Energy (kWh)
10.24
14.336
16.076
Module Nominal Voltage (V)
51.2
Module Capacity (Ah)
 200 280 314
System Expansion (Example) GHS-200-E140 GHS-200-E150 GHS-280-E200 GHS-280-E215 GHS-314-E225 GHS-314-E241
Battery Module Qty In Series ( Optional )
 14 15 14 15 14 15
System Nominal Voltage (V)
716.8
 768 716.8 768 716.8 768
Charge/Discharge
Current(A)
 100 140 157
Dimension (W*D*H, mm)
1500*685*1390
1500*685*1645
1500*798*1390
1500*798*1645
1500*798*1390
1500*798*1645
Weight Approximate (kg)
1358kg
1455kg
1680kg
1800kg
1764kg
1890kg
Storage Temperature (°C)

0-35°C
Recommend Depth of Discharge
 90%
Cycle Life

25±2℃, 0.5C/0.5C, DOD80%≥6000
Certification

CE/UN38.3/MSDS

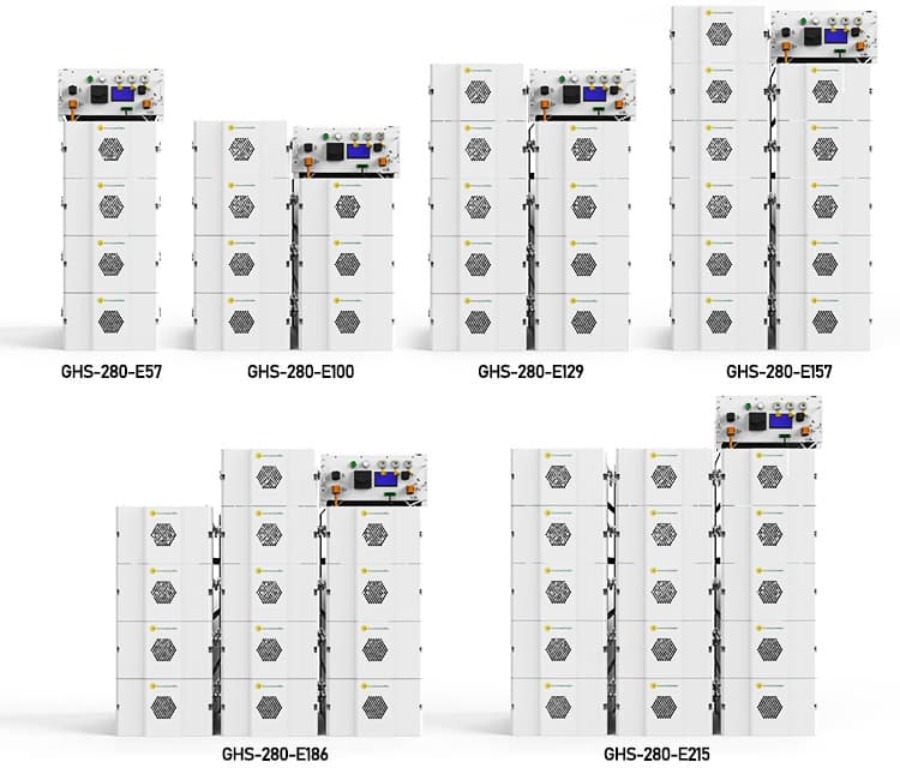

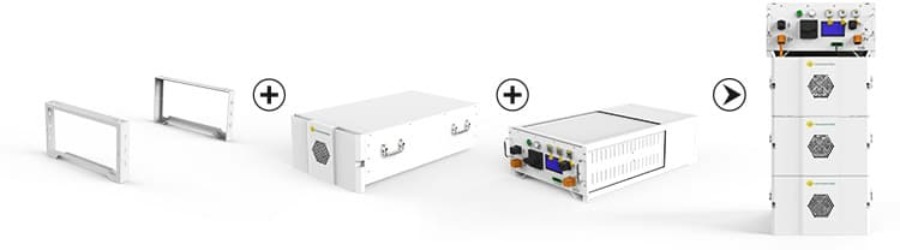

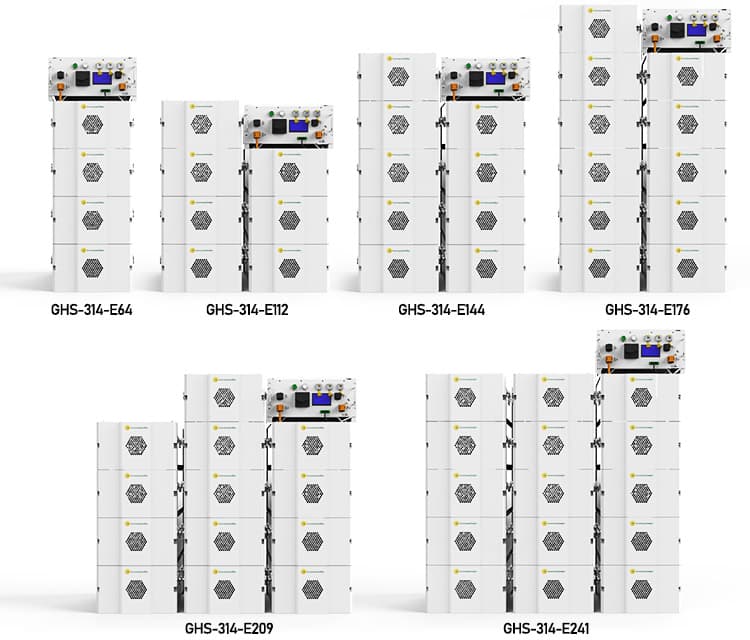

System scalability

lithium battery parallel connection

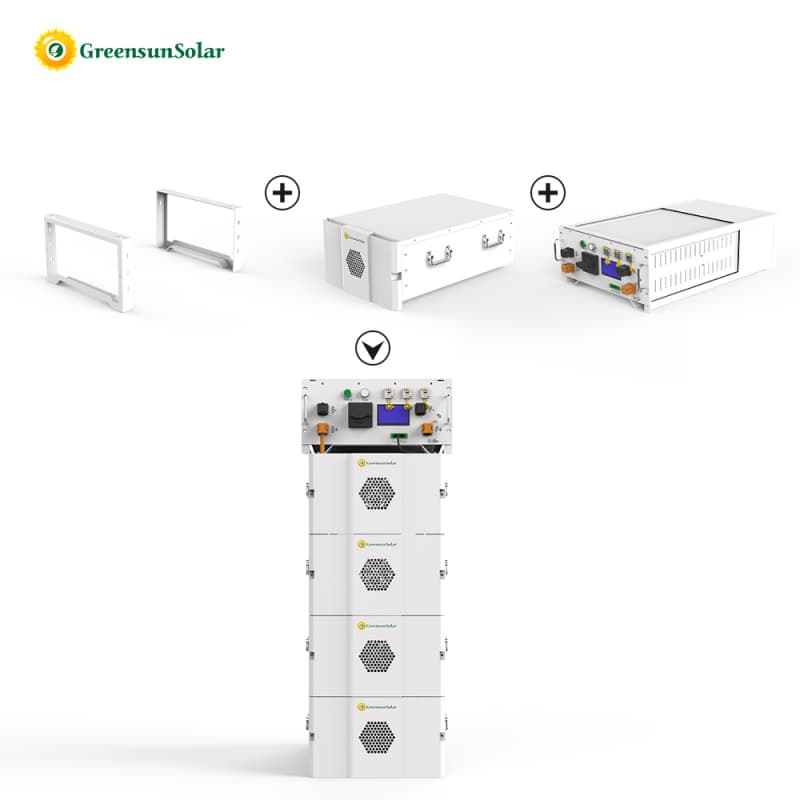

Stackable lithium battery for solar





International Standard Lithium Battery Transportation packaging
un38.3 standard
Lithium Battery package

Our Advantages

1. We are a real factory and have strict requirements on the quality of products.

2. We provide OEM services for many leading companies around the world.
we also have long-term cooperation with Solis, Deye,Growatt, Must,SMA and other tier-one brands.

3. As a factory, we have better control over product costs.

4. Both production and delivery are very fast.

5. Also, we provide stable and long-term after-sales service.


Why Choose Greensun Lithium Battery
In the photovoltaic energy storage sector,

lithium batteries offer significant advantages over traditional lead-acid batteries.

It offer increased safety, compact size, light weight, and fast charging.

It also offer lower self-discharge rates and higher energy density.

And also more user-friendly and have a longer lifespan.


We accept customized requests for this type of lithium battery and can configure and produce it according to your specific requirements.

Currently, our lithium battery products utilize A+ grade quality cells and do not use second-hand cells.

Each lithium battery undergoes multiple tests before shipment, including but not limited to cell voltage, cell current, battery voltage and current, and charge and discharge tests.

This ensures that our products meet the needs of mid-range and high-end customers.


We also offer a 10-year warranty.

Depending on the specific situation, our dedicated team of engineers can resolve customer issues through program upgrades, individual cell replacements, BMS replacements, or even complete battery replacements.

Our lithium-ion battery products have been exported to numerous countries, including but not limited to the United States, Canada, Puerto Rico, Germany, Poland, Belgium, the Philippines, Saudi Arabia, South Africa, Nigeria, and more.

Our products comply with major market certifications such as CE, ISO, MSDS, and UN38.3.


If you have any lithium-ion battery needs,
You can write to us below⬇️⬇️⬇️，and contact us directly.
We will tailor a specific energy storage product to meet your specific needs.
