رقم الصنف :
Split phase 120/240V solar hybrid inverterالنظام (موك) :
Negotiableقسط :
T/T, etcأصل المنتج :
Chinaلون :
Whiteميناء الشحن :
Shanghai, Ningbo, Shenzhenمهلة :
5-15 Daysوزن :
42KGProduct Introduction
Inverter Parameters
| Model | 8KW | 10KW | 12KW |
|
Rated Output Power
|
8,800W
|
10,000W
|
12,000W
|
|
Rated Output Voltage
|

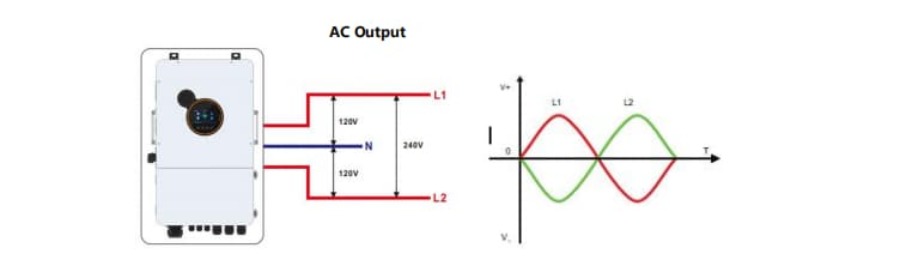

120/240Vac, single-phase / split-phase / three-phase(parallel)
|
||
|
Load Capacity of Motors
|
5HP
|
6HP
|
|
|
Rated AC Frequency
|
50/60Hz
|
||
|
Battery Type
|
Lead-acid / Li-ion / User-defined
|
||
|
Rated Battery Voltage
|
48V
|
||
|
Max. PV Charging Current
|
200A
|
||
|
Num. of MPPT
|
2
|
||
|
Max. PV Array Power
|
5,500W+5,500W
|
6,600W+6,600W
|
|
|
Max. Input Current
|
22A+22A
|
||
|
Max. Open-circuit Voltage
|
500Vdc+500Vdc
|
||
|
MPPT Operating Voltage Range
|
125～450Vdc
|
||
|
Input Voltage Range
|
90～140Vac
|
||
|
Frequency Range
|
50/60Hz
|
||
|
Num. of Parallel
|
1～6 units
|
||
|
Dimensions
|
750*440*240mm (2.46*1.44*0.79ft)
|
||
|
Weight
|
42kg (92.59lb)
|
||
|
Embedded Interfaces
|
RS485 / CAN / USB / Dry contact
|
||
|
External Modules (optional)
|
Wi-Fi / GPRS
|
||
|
Safety
|
IEC62109-1, IEC62109-2
|
||

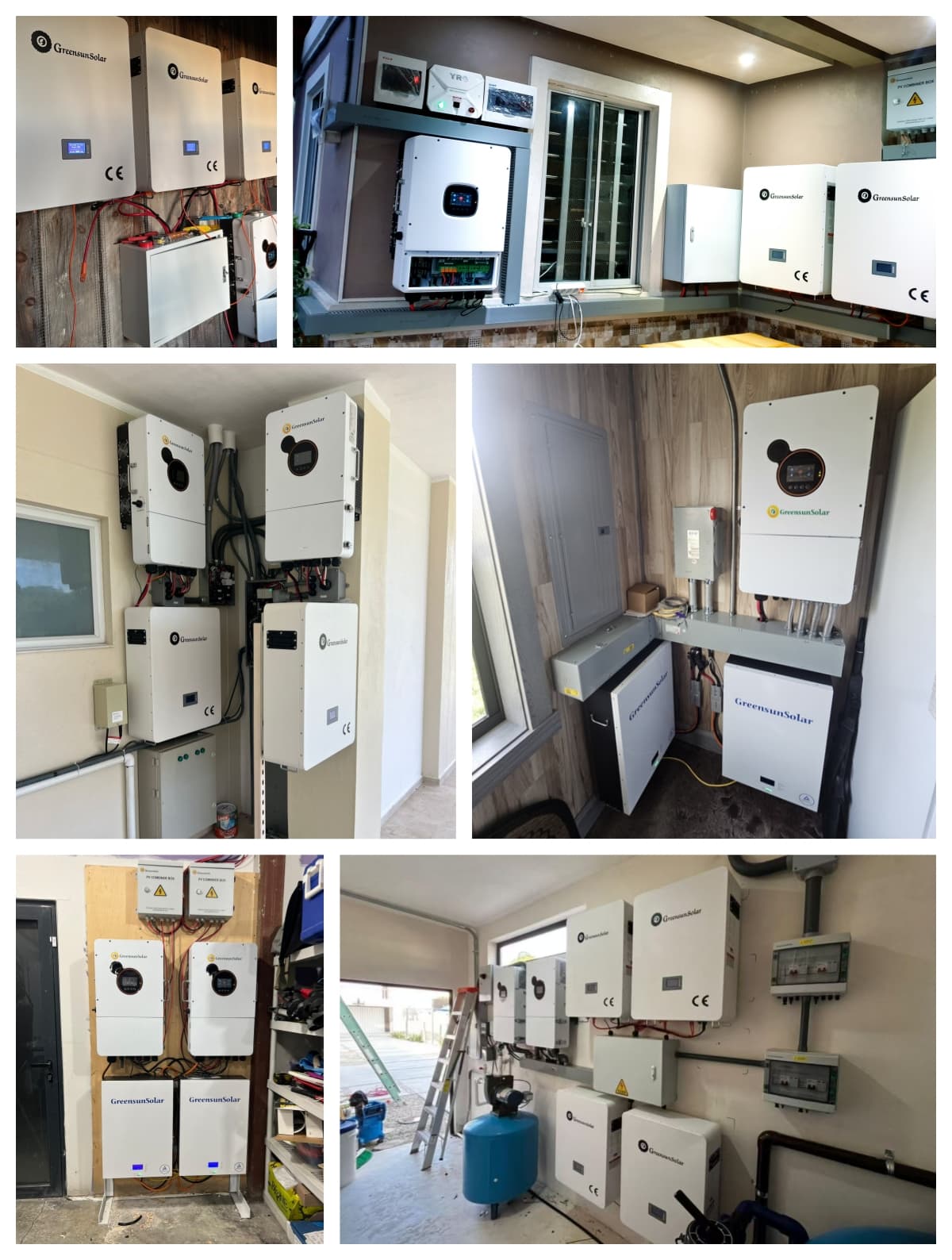

Products&Case
Exhibition
Why Choose Greensun
1.We are a real factory and have strict requirements on the quality of products.
2.We provide OEM services for many leading companies around the world. we also have long-term cooperation with Solis, Deye,Growatt, Must,SMA and other tier-one brands.
3.As a factory, we have better control over product costs.
4.Both production and delivery are very fast.
5. Also, we provide stable and long-term after-sales service.
If you have any Solar needs,
You can write to us below⬇️⬇️⬇️，and contact us directly.
We will tailor a specific energy storage product to meet your specific needs.

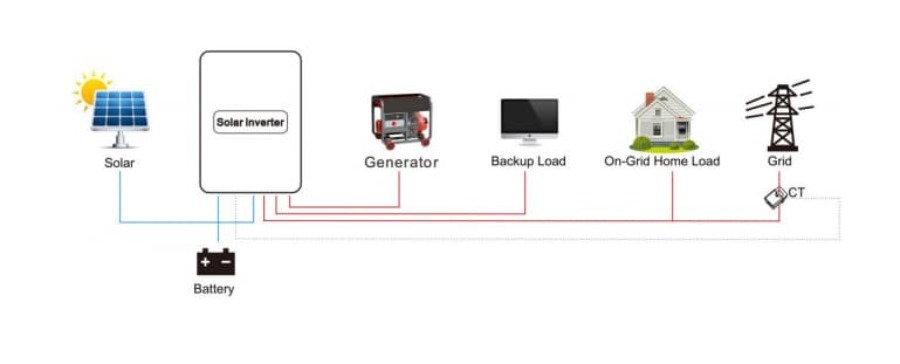

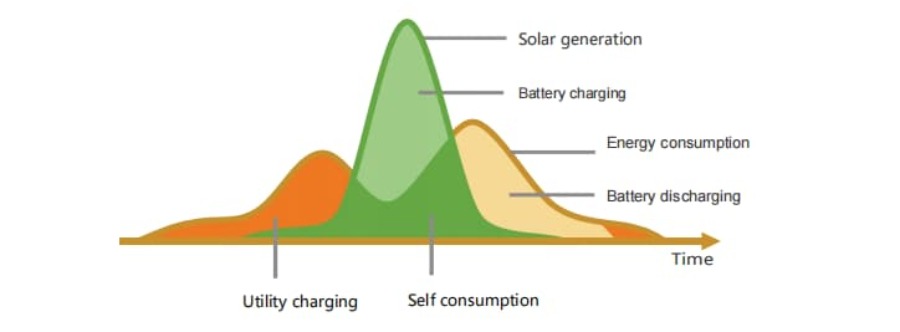

combine the best of grid-tied and off-grid designs allows users to use solar-generated power first, store excess in batteries for later use (e.g., peak demand hours or outages), and feed surplus to the grid for credits
100% unbalanced output, each phase AC couple to retrofifit existing solar system Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Flexible charge and discharge settings allows for greater utilization of the energy storage system Eligible for enrollment in most VPP programs which yields additional benefifits for the system owner Split Phase Low Voltage Energy Storage Inverters
Advanced MPPT with up to 99.9% efficiency Up to 22A*2 PV input current With IP65 protection degree Up to 200A charging current Supports Li-ion battery BMS communication
100% من الناتج غير المتوازن في كل مرحلة زوج تيار متردد لتحديث نظام الطاقة الشمسية الحالي الحد الأقصى 10 قطع متوازية للشبكة وخارج الشبكة التشغيل؛ دعم بطاريات متعددة بالتوازي دعم تخزين الطاقة من مولد الديزل
