رقم الصنف :
single phase 3-11kW off grid inverterالنظام (موك) :
Negotiableقسط :
T/T, etcأصل المنتج :
Chinaلون :
Whiteميناء الشحن :
Shanghai, Ningbo, Shenzhenمهلة :
5-15 Daysوزن :

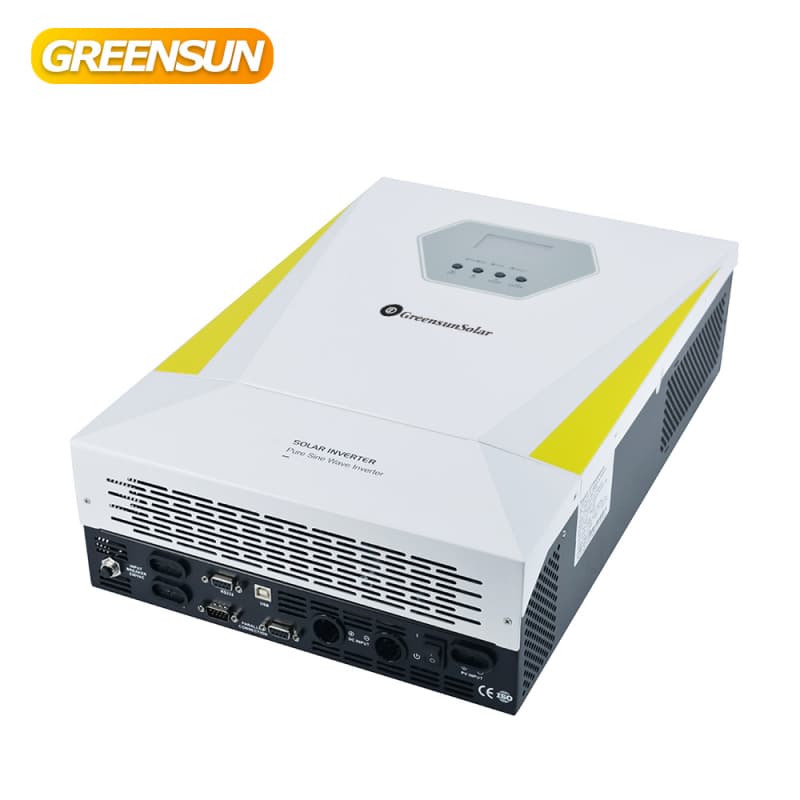

According to model powerAll In one solar off grid inverter
Inverter Parameters
|
Model No
|
3KW | 3.6KW | 5.5KW | 6.2KW | 11KW |
|
Input Formation
|
L+N+PE
|
||||
|
AC Input
|
220/230/240VAC
|
||||
|
Input Voltage Range
|
90-280VAC±3V (Normal Mode) 170-280VAC±3V (UPS Mode)
|
||||
|
Frequency
|
50/60Hz (Adaptive)
|
||||
|
Rated Power
|
3000W
|
3600W
|
5500W
|
6200W
|
11000W
|
|
Output Voltage
|
220/230/240VAC±5%
|
||||
|
Output Frequency
|
50/60Hz±0.1%
|
||||
|
Peak Power
|
6000VA
|
7200VA
|
10000W
|
12400W
|
22000W
|
|
Rated Voltage
|
24VDC
|
48VDC
|
|||
|
Max PV Input
|
4200W
|
5500W
|
6200W
|
2x5500W
|
|
|
MPPT Tracking Range
|
120-500VDC
|
120-500VDC
|
120-500VDC
|
90-500VDC
|
|
|
MAX PV Charge Current
|
100A
|
100A
|
100A
|
100A
|
150A
|
|
MAX Charge Current
|
100A
|
120A
|
100A
|
120A
|
150A
|
|
L*W*H (mm)
|
495*312*146mm
|
570*500*148mm
|
|||
|
Standards and Certifications
|
EN-IEC 60335-1,EN-IEC 60335-2-29,IEC 62109-1
|
||||

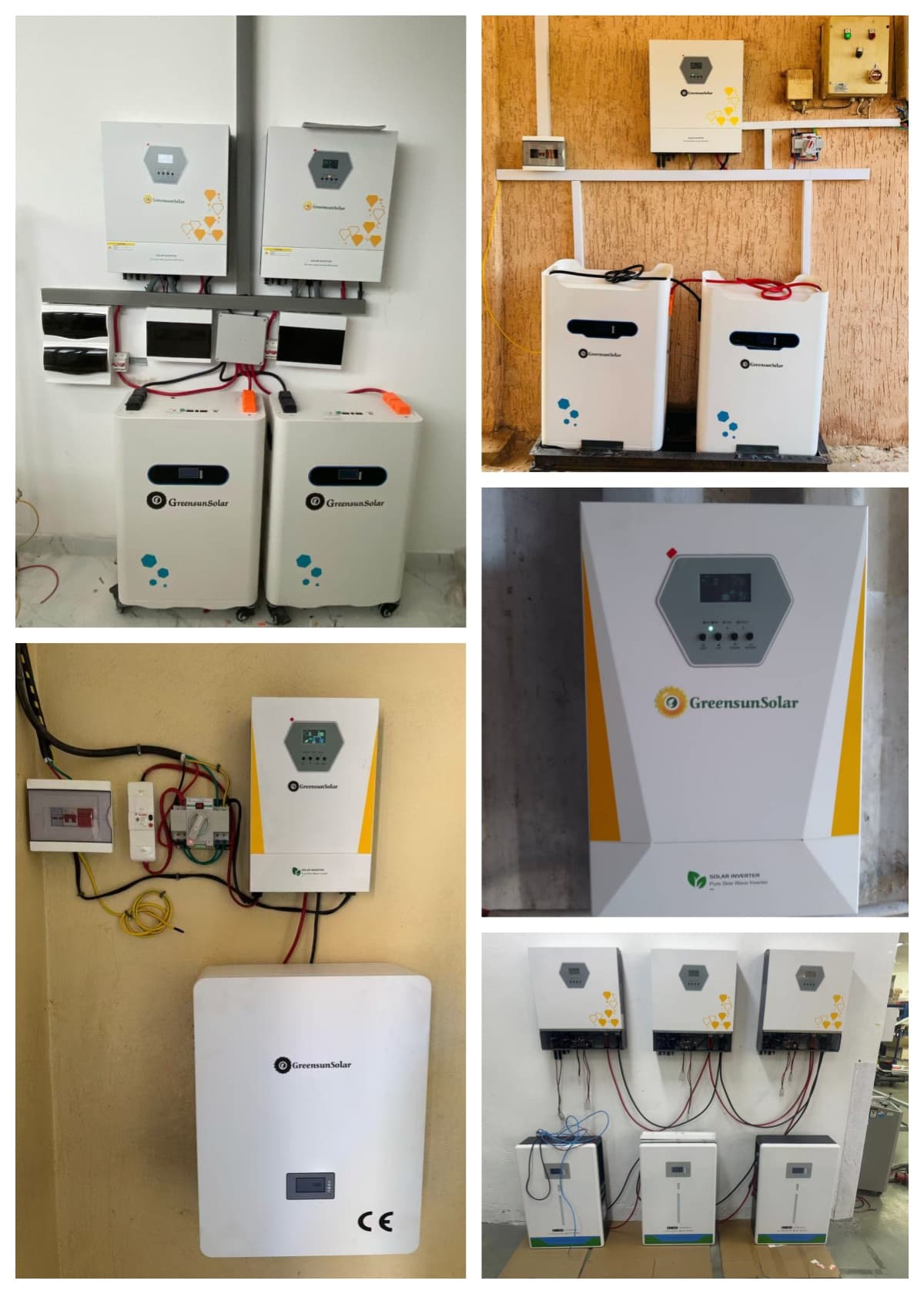

Products&Case
Exhibition
Why Choose Greensun
1.We are a real factory and have strict requirements on the quality of products.
2.We provide OEM services for many leading companies around the world. we also have long-term cooperation with Solis, Deye,Growatt, Must,SMA and other tier-one brands.
3.As a factory, we have better control over product costs.
4.Both production and delivery are very fast.
5. Also, we provide stable and long-term after-sales service.
If you have any Solar needs,
You can write to us below⬇️⬇️⬇️，and contact us directly.
We will tailor a specific energy storage product to meet your specific needs.
combine the best of grid-tied and off-grid designs allows users to use solar-generated power first, store excess in batteries for later use (e.g., peak demand hours or outages), and feed surplus to the grid for credits

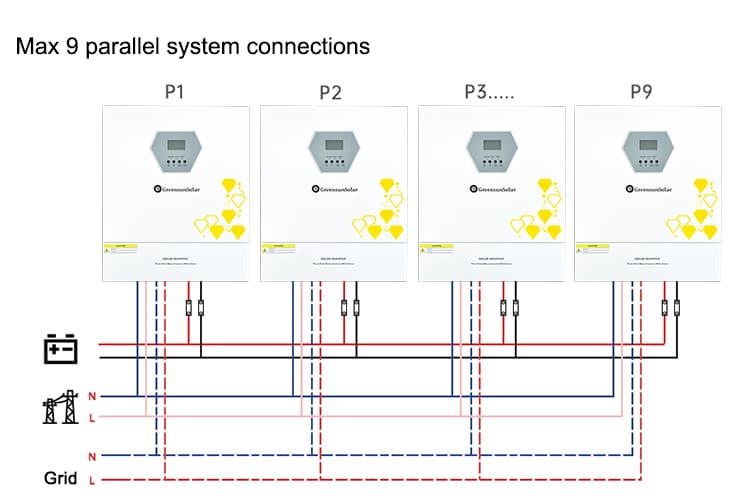

100% unbalanced output, each phase AC couple to retrofifit existing solar system Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Flexible charge and discharge settings allows for greater utilization of the energy storage system Eligible for enrollment in most VPP programs which yields additional benefifits for the system owner Split Phase Low Voltage Energy Storage Inverters
Advanced MPPT with up to 99.9% efficiency Up to 22A*2 PV input current With IP65 protection degree Up to 200A charging current Supports Li-ion battery BMS communication

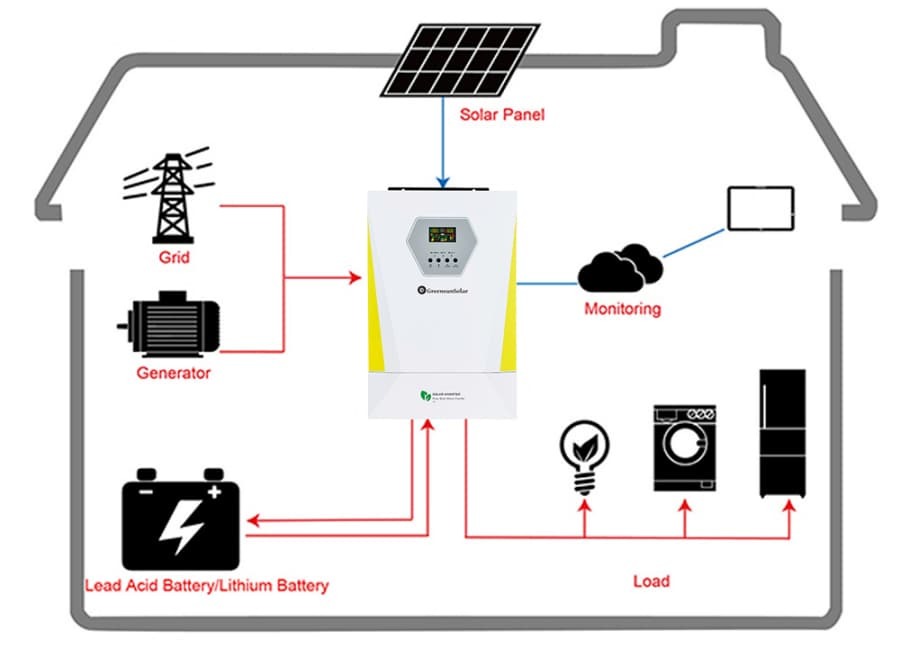

Lithium Battery Auto-restart Function, More Convenient for Lithium Battery Charging Intelligent Power supply Mode, Intelligent Distribution of Solal Panel/Mains/ Battery Power Shares Communication Option: External WIFI, Supervise at Any Time High Precision of output voltage,±5%, Take Care of Your Appliances
100% من الناتج غير المتوازن في كل مرحلة زوج تيار متردد لتحديث نظام الطاقة الشمسية الحالي الحد الأقصى 10 قطع متوازية للشبكة وخارج الشبكة التشغيل؛ دعم بطاريات متعددة بالتوازي دعم تخزين الطاقة من مولد الديزل
شبكة IPv6 مدعومة
