 BESS 500KW+1MWH Container System With Solis 125KW Inverter
1mwh container battery
BESS Container manufacturer

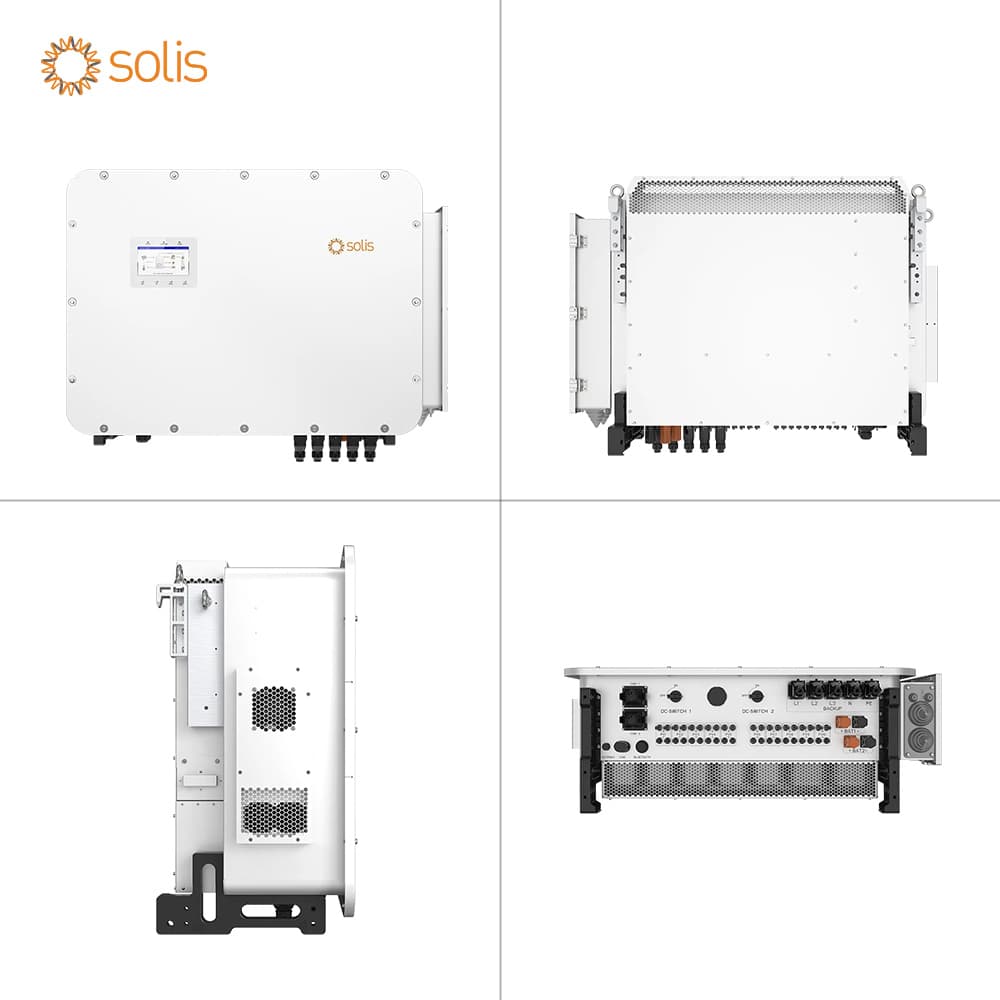

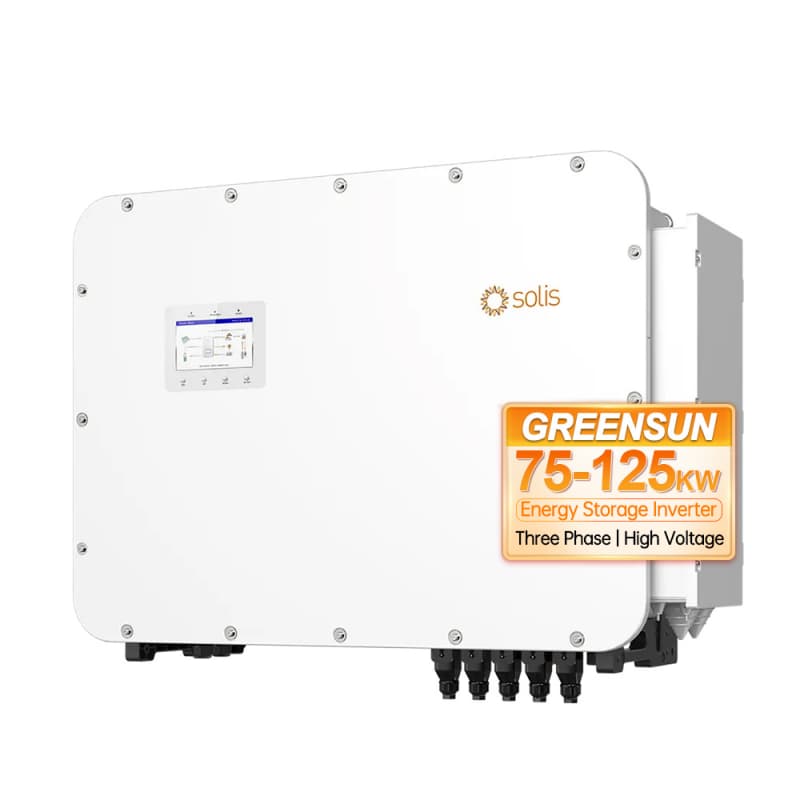

solis 125KW inverter
solar hybrid inverter
High voltage Lithium battery

BESS 500KW+1MWH Container System With Solis 125KW Inverter

Maximum safety utilizing the safest type of lithium battery chemistry (LiFePO4) combined with
an intelligent 2-level Battery Management System
 Outstanding performance and long lifespan with over 8000 cycles at 0.5C
 Optimized for both on-grid and off-grid applications
20' containerized design complete with battery, Hybrid Inverter, HVAC, Fire Extinguishing
System, Lighting.
 Designed for easy installation and maintenance
 Overall transportation

  • رقم الصنف :

    BESS Container System

  • النظام (موك) :

    Negotiable

  • قسط :

    T/T, etc

  • أصل المنتج :

    China

  • لون :

    White

  • ميناء الشحن :

    Shanghai, Ningbo, Shenzhen

  • مهلة :

    5-15 Days

  • وزن :

    16000KG
مطلوب الان
فئات المنتج
منتجات جديدة

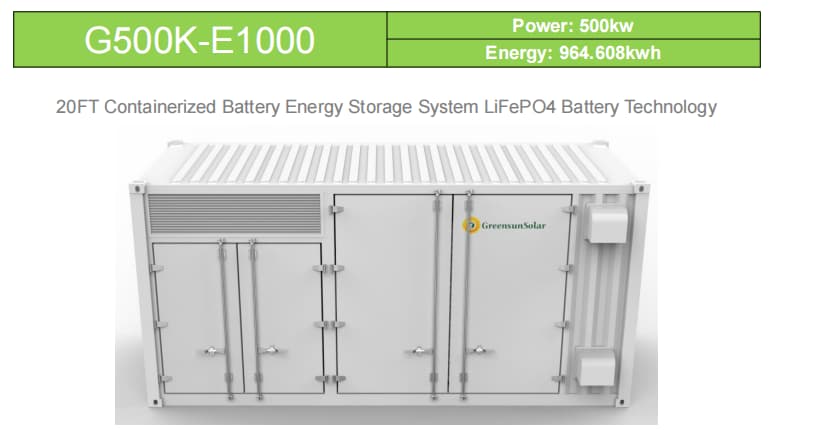

20 Feet Container Energy Storage System

BESS Container System



System Composition

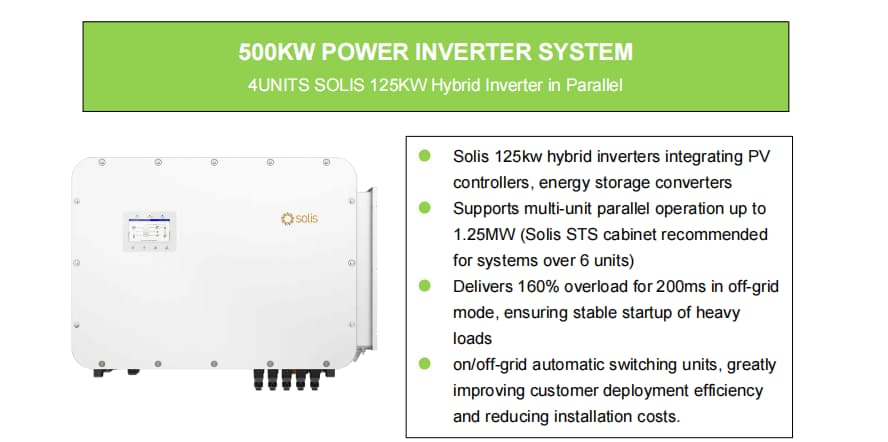

solis hybrid inverter

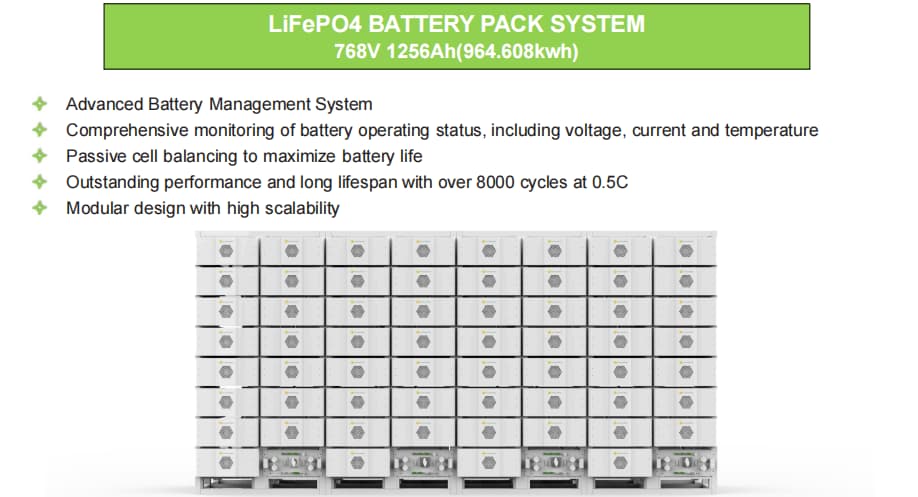

High Voltage Lithium Battery System

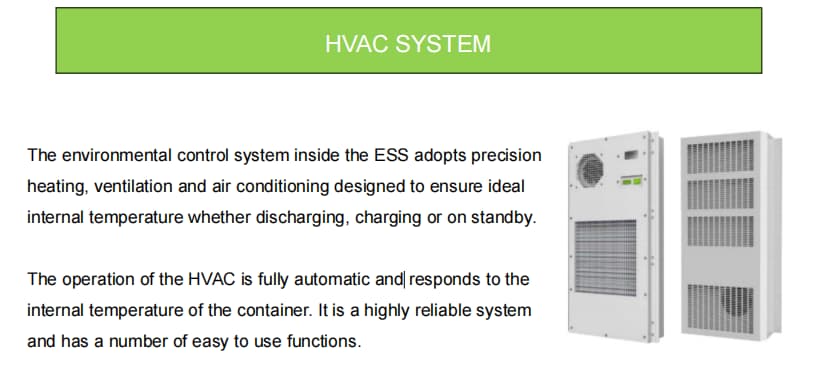

HVAC SYSTEM



BESS container system



System Datasheet for Review

Rated power (kW)
500KW（4*125kw in parallel）
Rated voltage (Vac)
3/N/PE, 220 V / 380 V, 230 V / 400 V
AC output
3W+N+PE
Rated current (A)
721.6A (180.4 *4A)
On / off-grid switching
Support
Rated frequency(Hz)
45-55 / 55-65
Power factor
> 0.99 (0.8 leading - 0.8 lagging)
Max. PV power (kW)
1000KW (250KW*4)
MPPT operating voltage range (V)
1,000
Cell type
3.2V 314Ah/LiFePO4
Nominal voltage (V)
768/1P 240S
Nominal energy (kWh)
964.608
Working voltage range (V)
672~850
Number of battery cycles
≥8,000
System specification
500kW/964.608kWh
Dimensions W *D *H (mm)
6,058×2,438×2,896
Net weight (kg)
16,000

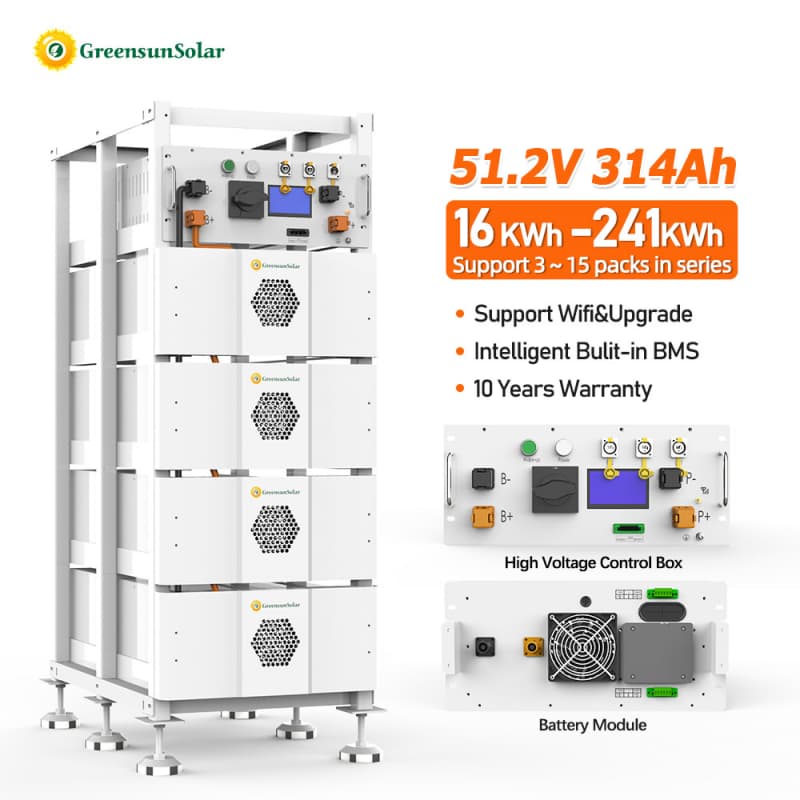

Battery Pack specification
Battery module specification
Normal voltage
768V
Normal Voltage
51.2V
Voltage Range
672-852V
Normal capacity
314Ah
Capacity
1256Ah(314Ah*4)
Normal energy
16.078KWH
Normal energy
1205.760KWh
Voltage range
44.8-56.8V
Rack cluster quantity
4clusters
Cycles @ 25 °C
8000Cycle
Cluster capacity
768V 314Ah
BMU
Include
Combiner method
4clusters in parallel
Cell configuration
16S*1P
Cluster combination
15pcs battery module in
series
Module Dimension
483*245*792mm
Cluster dimension
1070*800*2330mm
Module weight
125kg
Per Cluster weight
1980kg
Approvals
CE, MSDS,UN38.3



system group scheme

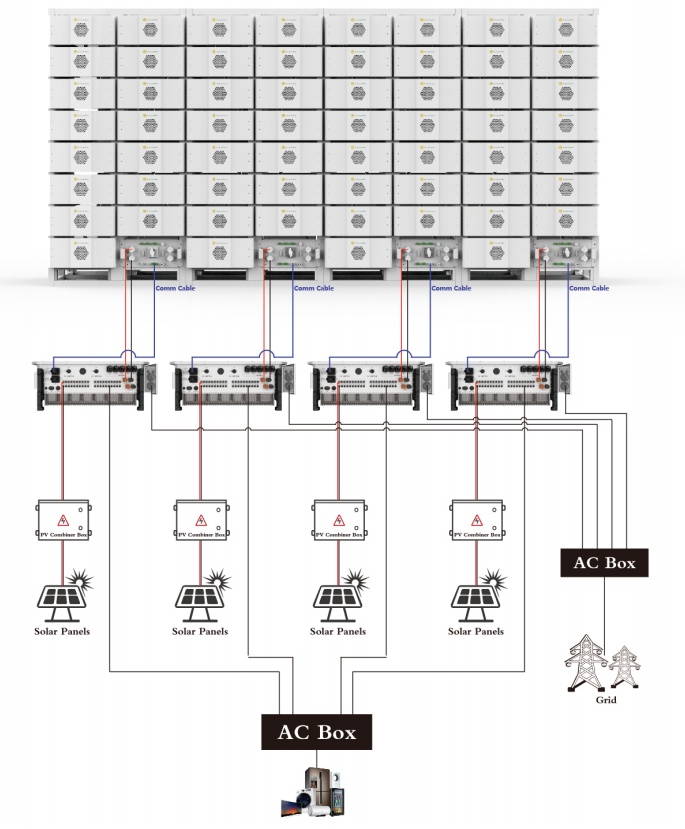

Bess system diagram

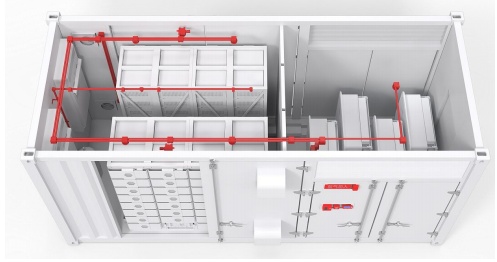

Fire protection system layout
Bess fire protection system

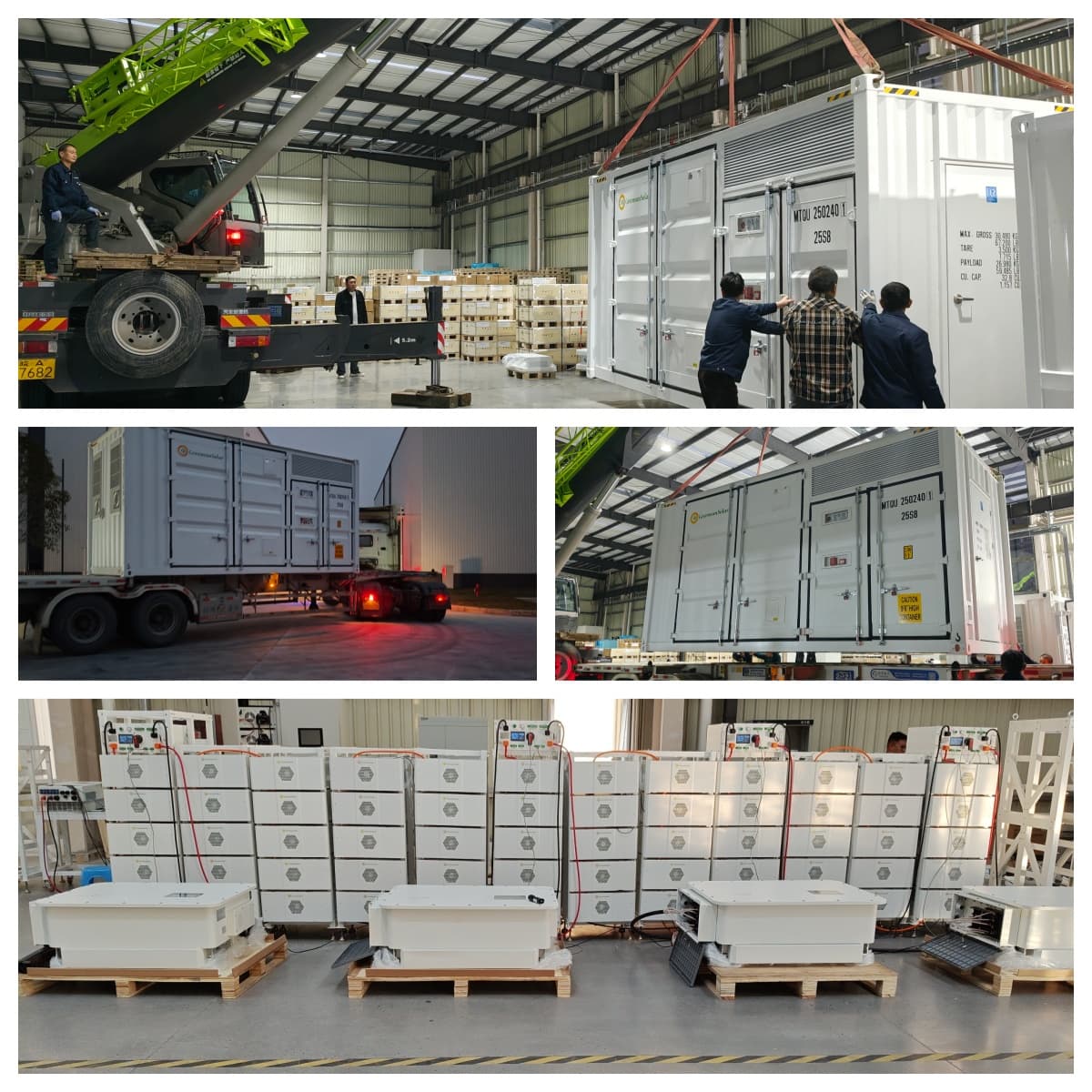

Products&Case
20ft BESS container system
BESS Container system



Our Advantages

1. We are a real factory and have strict requirements on the quality of products.

2. We provide OEM services for many leading companies around the world.
we also have long-term cooperation with Solis, Deye,Growatt, Must,SMA and other tier-one brands.

3. As a factory, we have better control over product costs.

4. Both production and delivery are very fast.

5. Also, we provide stable and long-term after-sales service.


Why Choose Greensun Lithium Battery
In the photovoltaic energy storage sector,

lithium batteries offer significant advantages over traditional lead-acid batteries.

It offer increased safety, compact size, light weight, and fast charging.

It also offer lower self-discharge rates and higher energy density.

And also more user-friendly and have a longer lifespan.


We accept customized requests for this type of lithium battery and can configure and produce it according to your specific requirements.

Currently, our lithium battery products utilize A+ grade quality cells and do not use second-hand cells.

Each lithium battery undergoes multiple tests before shipment, including but not limited to cell voltage, cell current, battery voltage and current, and charge and discharge tests.

This ensures that our products meet the needs of mid-range and high-end customers.


We also offer a 10-year warranty.

Depending on the specific situation, our dedicated team of engineers can resolve customer issues through program upgrades, individual cell replacements, BMS replacements, or even complete battery replacements.

Our lithium-ion battery products have been exported to numerous countries, including but not limited to the United States, Canada, Puerto Rico, Germany, Poland, Belgium, the Philippines, Saudi Arabia, South Africa, Nigeria, and more.

Our products comply with major market certifications such as CE, ISO, MSDS, and UN38.3.


If you have any lithium-ion battery needs,
You can write to us below⬇️⬇️⬇️，and contact us directly.
We will tailor a specific energy storage product to meet your specific needs.
