What are the configurations of the Greensun 241kwh all in one outdoor cabinet?

1. External Inverter

Greensun's outdoor all in one cabinets generally use 50-125kw hybrid solar inverters (such as Deye, Solis, Growatt, Greensun, etc.), which can switch from on-grid to off-grid operation. This inverter has Wi-Fi remote monitoring, IP65 protection, and 5 years warranty. During installation, ensure adequate ventilation and avoid direct sunlight.

2. Battery Module and High-Voltage Control Box (CE, MSDS, UN 38.3 Certified)

Greensun uses only Grade A battery cells from leading brands such as EVE, REPT, and Gotion high-tech. The battery module of the Greensun 241kw outdoor all in one cabinet uses 768V 314AH lithium iron phosphate batteries (15pcs 51.2V 314AH batteries connected in series). 768V 280AH High Voltage lithium batteries are also available. This battery typically has a cycle life of 6,000 cycles, with a maximum of 8,000 cycles, and a charge/discharge coefficient of 0.5C. Each module features a built-in fire aerosol (for fire extinguishing properties) and a fan (to cool the battery, activating at 30°C and deactivating at 25°C). It also has Bluetooth and Wi-Fi monitoring capabilities. We offer 10years warranty. Our lithium-ion batteries can communicate with many inverters and are factory-tested before shipment.

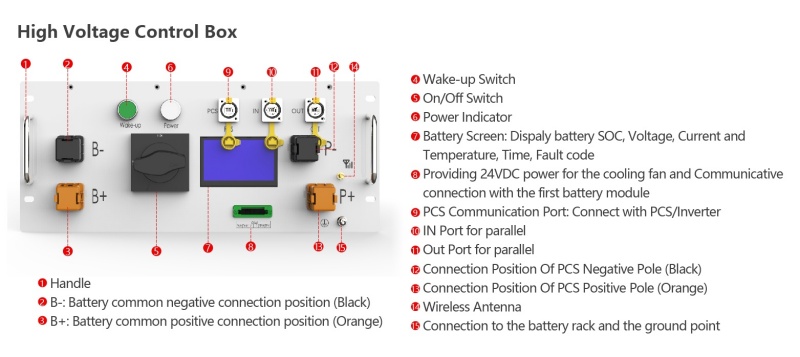

Our high voltage control box utilizes the Udan passive balancing solution. Its core advantages lie in its high integration, precise sampling, and effective suppression of voltage inconsistencies at the end of the charge phase, as well as robust data management and communication capabilities.Outdoor all in one Cabinets.

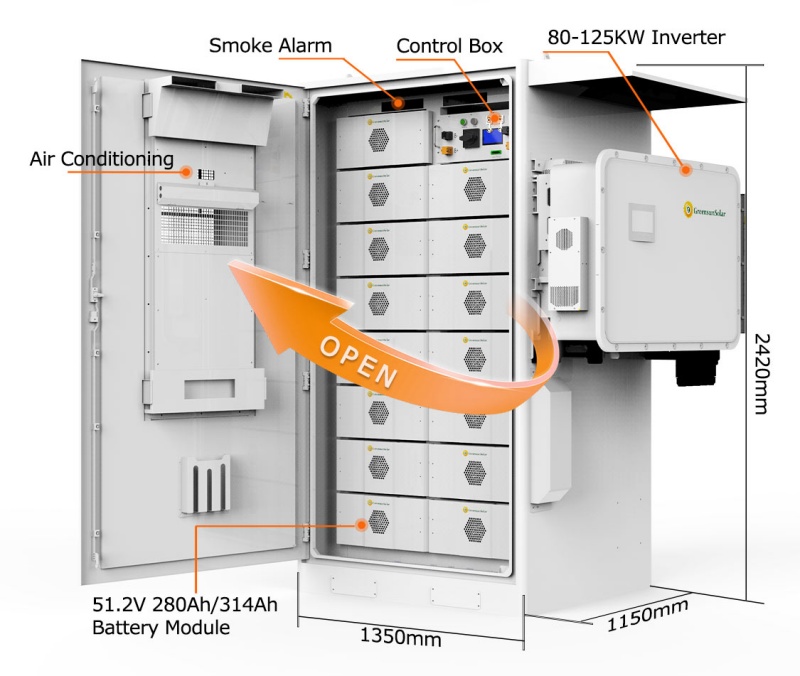

3.Outdoor all in one cabinets

Our outdoor all in one cabinets are equipped with air conditioning and smoke sensors, with optional security and smoke detection systems. The air conditioning cools the battery (activating at 30°C and deactivating at 25°C). The internal battery bracket is 5mm thick and insulated with fire-resistant insulation for heat preservation. It boasts an IP55 protection rating, supports parallel connection of up to 10 units, and offers OEM.

If you have any solar energy storage system project, you can contact us at any time. We will provide you with a complete solution based on your specific needs. Welcome to inquire!
